Omron E5AR-C4B AC100-240 — Process / Temperature Controllers

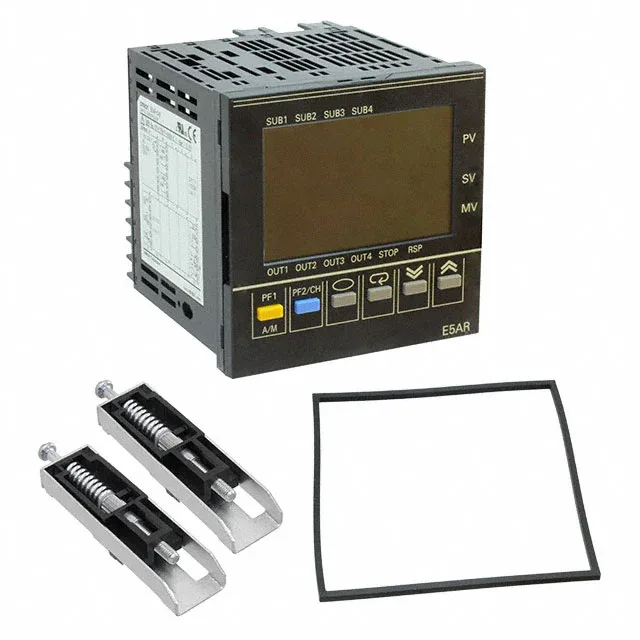

Omron E5AR-C4B AC100-240

MPNE5AR-C4B AC100-240
Obsolete

CONTROL TEMP/PROCESS 100-240V

$573.86 – $1,182.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5AR-C4B AC100-240 — Identification
ParameterValue
SeriesE5AR
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W)
E5AR-C4B AC100-240 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5AR-C4B AC100-240 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
FeaturesEvent Input
E5AR-C4B AC100-240 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeAnalog (2), Relay (4)
E5AR-C4B AC100-240 — Display
ParameterValue
Display typeLCD - Tri Color Characters, Backlight
Characters per row5, 5, 4
Character height0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm)
E5AR-C4B AC100-240 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5AR-C4B AC100-240 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 92.00mm x 92.00mm
Termination styleScrew Terminal
E5AR-C4B AC100-240 — Other specifications
ParameterValue
Weight0.992 lb (449.96 g)
MPN
E5AR-C4B AC100-240
