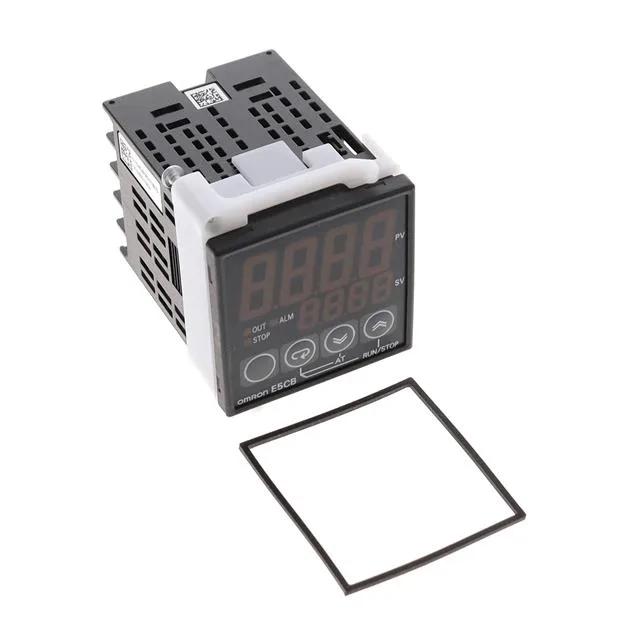

Omron E5CB-Q1TC AC100-240 — Process / Temperature Controllers

Omron E5CB-Q1TC AC100-240

MPNE5CB-Q1TC AC100-240
Active

CONTROL TEMP 100-240V PANEL MT

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

E5CB-Q1TC AC100-240 — Identification
ParameterValue
SeriesE5CB
TypeTemperature Controller (Type J, K, R, S, T)
E5CB-Q1TC AC100-240 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5CB-Q1TC AC100-240 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5CB-Q1TC AC100-240 — I/O
ParameterValue
Input range-200°C ~ 1700°C
Output typeRelay, Voltage (External SSR)
E5CB-Q1TC AC100-240 — Display
ParameterValue
Display typeLED - Dual Color Characters
Characters per row4, 4
Character height0.638" (16.20mm)
E5CB-Q1TC AC100-240 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5CB-Q1TC AC100-240 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleScrew Terminal
E5CB-Q1TC AC100-240 — Other specifications
ParameterValue
Weight0.221 lb (100.24 g)
MPN
E5CB-Q1TC AC100-240
