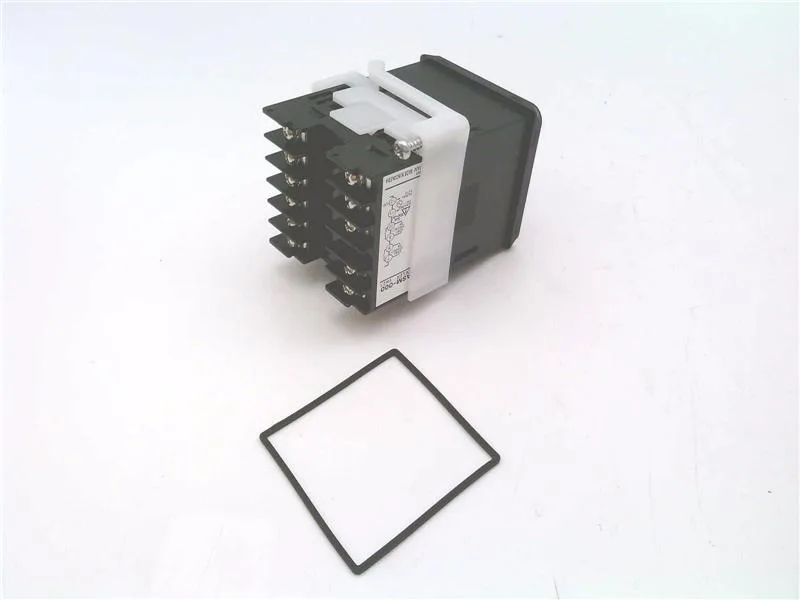

Omron E5CC-QX2ASM-000 Temperature Controller, 48x48mm panel-mount, PID or ON/OFF control, voltage output for SSR, 2 auxiliary outputs
| Parameter | Value |
|---|---|
| Control method | ON/OFF control or 2-PID control (with auto-tuning) |
| Parameter | Value |
|---|---|
| Weight | 1 Kg |
| Altitude | 2,000 m max |
| Product type | Temperature Controller |
| Setting method | Digital setting using front panel keys |
| Input impedance | Current input: 150 O max., Voltage input: 1 MO min |
| Auxiliary output | 2 |
| Control output 1 | QX = Models with 1 Voltage Output (for Driving SSR) |
| I/O channels | 2 |
| Indication method | 11-segment digital display and individual indicators |
| Power consumption | 5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or 1.6 W max. at 24 VDC |
| Dimensions (LxWxH) | 7.3cm x 4.8cm x 4.8cm |
| Power supply voltage | 100 to 240 VAC |
| Operating voltage range | 85% to 110% of rated supply voltage |
The E5CC-QX2ASM-000: Powered from 100 to 240 VAC, with a 24 VAC or 24 VDC option that draws 3.1 VA or 1.6 W respectively. That keeps it on a common 24 V control bus without a separate transformer. Control output is a voltage pulse for driving a solid-state relay (SSR). Two auxiliary outputs (alarm or event) expand the I/O without adding an expansion module.
ON/OFF or 2-PID control with auto-tuning. Control output is a voltage pulse for SSR. Two auxiliary outputs are available for alarms or events.
100 to 240 VAC nominal (operating range 85–110 %). Also accepts 24 VAC (3.1 VA) or 24 VDC (1.6 W).
