Omron E5CC-QX2DBM-004 — Process / Temperature Controllers

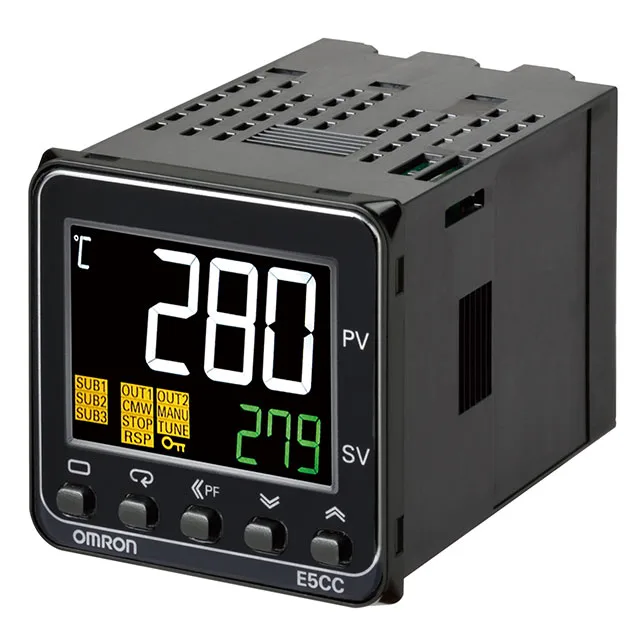

Omron E5CC-QX2DBM-004 Temp Controller, 24VAC/DC

MPNE5CC-QX2DBM-004
Active

Omron E5CC Series, Temperature/Process Controller, E5CC-QX2DBM-004, 24VAC/DC, Relay (2) + Voltage (SSR) Output, RS-485 Communications, Spring Terminals, IP66.

Omron E5CC-QX2DBM-004 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5CC-QX2DBM-004 — Identification
ParameterValue
SeriesE5CC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5CC-QX2DBM-004 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5CC-QX2DBM-004 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
FeaturesEvent Input
E5CC-QX2DBM-004 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (2), Voltage (External SSR)
E5CC-QX2DBM-004 — Communication
ParameterValue
Communication interfacesRS-485 (CompoWay/F, Modbus)
E5CC-QX2DBM-004 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.600" (15.20mm), 0.280" (7.10mm)
E5CC-QX2DBM-004 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5CC-QX2DBM-004 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleSpring Terminal
E5CC-QX2DBM-004 — Other specifications
ParameterValue
Weight0.265 lb (120.2 g)

Product details

The E5CC-QX2DBM-004: Compared to the E5CC-CX3A5M-004, the QX2DBM-004 runs on 24VAC/DC instead of 100-240VAC, uses spring terminals instead of screw terminals, and swaps the analog output for a second relay and a voltage (SSR) output. Same panel cutout (45mm x 45mm), same RS-485 Modbus, same IP66 front. If your panel is 24VDC already and you need SSR drive, this is the direct pick; if you are on 100-240VAC, the CX3A5M-004 is a better fit but requires screw terminals and offers an analog output.

The E5CC-QX2DBM-004 is flagged active – no end-of-life notice, no LTB clock. That means you can put it on a BOM without worrying about a last-time-buy within months. Sourcing through our channel is quoted against your RFQ; we move these in single or multi-line volumes. Fast nickel beats slow dime – if you need a 24VDC controller with SSR drive and Modbus, this is a straightforward line-item to close.

Frequently asked questions

What type and series does this component belong to?

It is a Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) in the Omron E5CC series.

Will E5CC-QX2DBM-004 drop into a panel specified around E5CC-CX3A5M-004 without rewiring?

No. The supply voltage is 24VAC/DC versus 100-240VAC, and the termination style is spring terminals versus screw terminals. The panel cutout is identical, but the wiring and power supply will need to be adapted.
