Omron E5CC-QX3A5M-001 — Process / Temperature Controllers

Omron E5CC-QX3A5M-001 Temp Controller, Relay+SSR Out

MPNE5CC-QX3A5M-001
Active

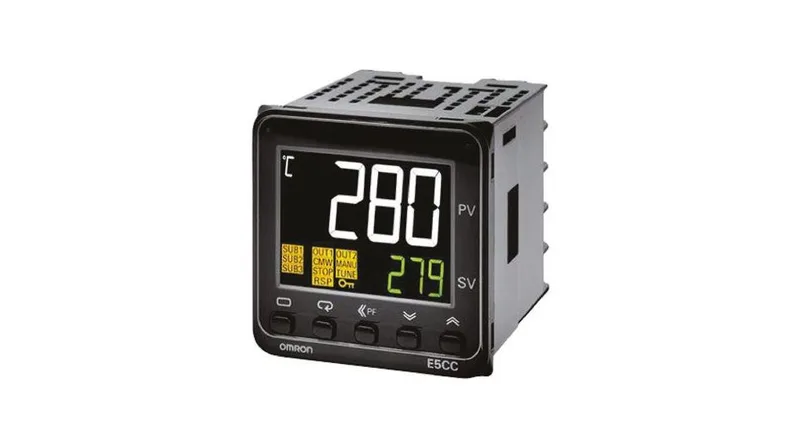

Omron E5CC Series, Process/Temperature Controller, Relay (3) + Voltage (External SSR) Output, Heater Fault Detection, Event Input, 100~240VAC, Screw Terminal, Panel Mount 45mm Square, IP66.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E5CC-QX3A5M-001 — Identification
ParameterValue
SeriesE5CC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5CC-QX3A5M-001 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5CC-QX3A5M-001 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
FeaturesEvent Input, Heater Fault Detection
E5CC-QX3A5M-001 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (3), Voltage (External SSR)
E5CC-QX3A5M-001 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.600" (15.20mm), 0.280" (7.10mm)
E5CC-QX3A5M-001 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5CC-QX3A5M-001 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleScrew Terminal

Product details

Signal and Output Config

The E5CC-QX3A5M-001: Outputs are three relay contacts plus a dedicated voltage pulse for external SSR – that voltage output (typically 12VDC at 20mA) lets you drive the SSR gate directly, removing the need for a separate SSR driver board. The relay bank handles alarm, event, or secondary control loops. Heater fault detection uses an external current transformer (CT) to monitor load current and flag a broken heater element. The event input can latch an external contact (e.g. door interlock, flow switch) to freeze or override the loop – both features give the controller standalone diagnostic reach without talking to a PLC.

Frequently asked questions

What is the closest functional alternative to the E5CC-QX3A5M-001?

The E5CC-CX3A5M-004 adds RS-485 and analog output but drops heater fault detection; the E5CC-RX3A5M-003 adds three extra relays and keeps heater fault detection but lacks the voltage SSR drive. Neither is a direct swap without rewiring.

What is the input type range?

It accepts RTD, thermocouple types B, E, J, K, L, N, PLII, R, S, T, U, W, plus 0–20mA and 0–10VDC analog inputs.

Will the E5CC-CX3A5M-004 drop into an existing E5CC-QX3A5M-001 panel without rewiring?

No – the output wiring differs: the CX3A5M-004 has analog output and serial terminals instead of the voltage SSR drive, and it lacks heater fault CT terminals. Mechanical fit and power supply are identical, but the control wiring must change.

MPN
E5CC-QX3A5M-001
