The Omron E5CC-QX3ASM-003 is a current-production digital temperature controller with the 003 option: RS-485 communications plus heater break alarm and HS alarm, intended for 3-phase heater applications. It accepts a universal input (thermocouple, RTD, or analog) and drives an external SSR via its voltage output. Screw terminals with cover make wiring straightforward for panel builders. Supply is 100 to 240 VAC. Three auxiliary outputs are included, one shared common. The RS-485 link allows data logging or multi-zone coordination over Modbus. The heater break alarm monitors current draw on 3-phase loads, so a single controller can manage up to 2 independent heater circuits with fault detection.

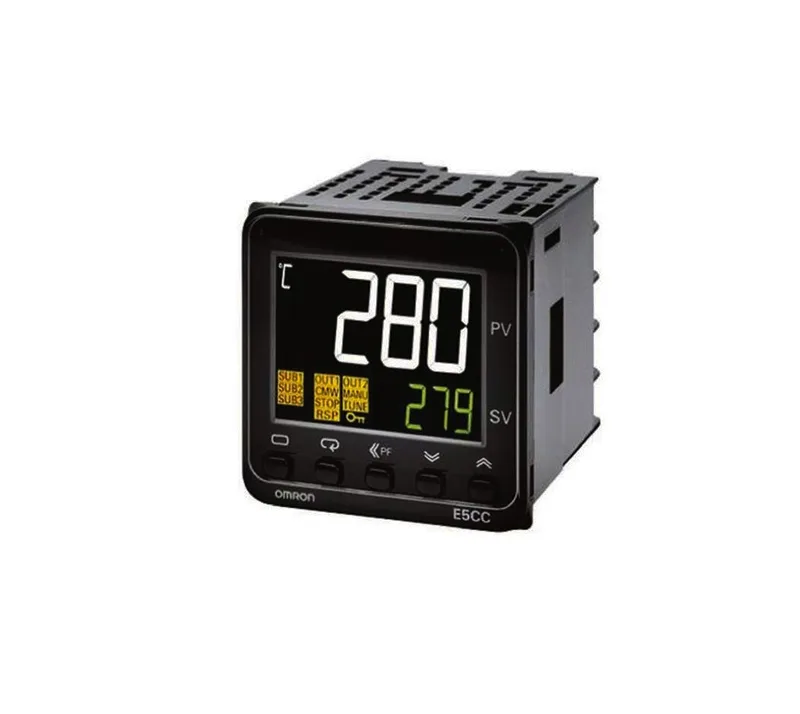

Omron E5CC-QX3ASM-003 Digital Temperature Controller, RS-485
MPNE5CC-QX3ASM-003
Omron E5CC Digital Temperature Controller, E5CC-QX3ASM-003, universal input, voltage output for SSR, RS-485 communications, 3 auxiliary outputs, 100-240 VAC.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Weight | Approx. 0.15 Kg |
| Options | 003 = 2 (for 3-phase heaters) HB alarm and HS alarm, RS-485 Communications |
| Input type | M = Universal input |
| Product type | E5CC Digital Temperature Controller |
| Terminal type | 5 = Screw terminals (with cover) |
| Control outputs 1 | QX = Voltage output (for driving SSR), None |
| Power supply voltage | A = 100 to 240 VAC |
| No. of auxiliary outputs | 3 = 3 (one common) |
Product details
Frequently asked questions
What does the 003 option code include?
The 003 option adds RS-485 communications, a heater break alarm (HB alarm), and an HS alarm. It is designed for 3-phase heater monitoring with two alarm outputs.
MPN
E5CC-QX3ASM-003
