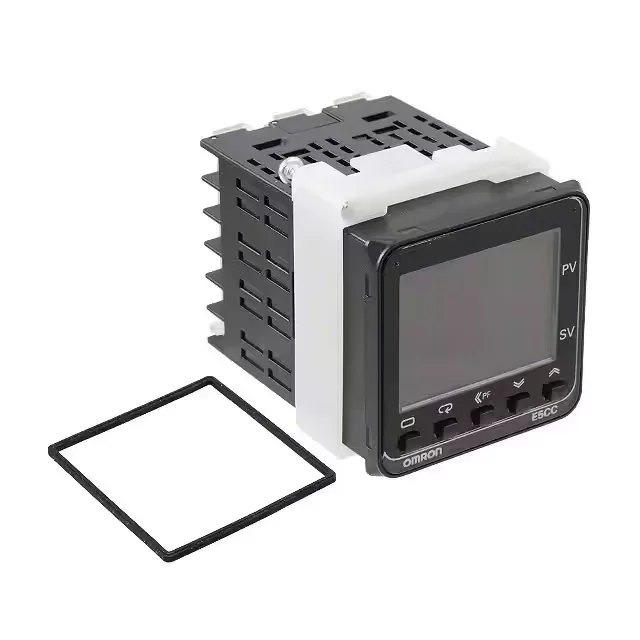

Omron E5CC-RX3D5M-003

Omron E5CC-RX3D5M-003 Process/Temp Controller, 4 Relay, 24V

MPN E5CC-RX3D5M-003
Active

Omron E5CC series process/temperature controller, 4 relay outputs, universal input (RTD, thermocouple, 0-20mA, 0-10VDC), RS-485 communications, 24VAC/DC supply, IP66-rated front panel, 45mm square cutout.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E5CC-RX3D5M-003 specifications
ParameterValue
SeriesE5CC
Output signalRelay (4)
Supply voltage24 VAC/DC
IP ratingIP66
ProtocolRS-485 (CompoWay/F, Modbus)
MountingPanel Mount
Temp operating max55 °C
Temp operating min-10 °C
Weight0.265 lb (120.2 g)
PackageBox
Control methodOn/Off, Proportional (PID)

Product details

Panel fit and what the inputs mean

The Omron E5CC-RX3D5M-003 fits the standard 45mm x 45mm square panel cutout common to 1/16 DIN controllers, so it drops into existing panel holes without rework. It handles RTD, thermocouple types B, E, J, K, L, N, PLII, R, S, T, U, W, plus 0-20mA and 0-10VDC process signals. The IP66 front-panel rating means the display and keypad survive washdown splashes and dusty environments without a secondary cover.

Four relays and PID — what you actually get

Four relay outputs let you drive a heat/cool pair plus an alarm and a remote setpoint or event output from one controller — that's one fewer box on the panel door. The control method includes both on/off and full PID with auto-tune, so it works for simple tank heaters and for processes that need tight overshoot control. RS-485 with CompoWay/F and Modbus protocols means it talks to most PLCs and SCADA systems without a protocol converter.

Active production — no obsolescence worry

It ships in a standard box package with screw-terminal connections — no special tooling or mating connectors needed.

MPN
E5CC-RX3D5M-003
