Omron E5CD-CX2A6M-000 — Process / Temperature Controllers

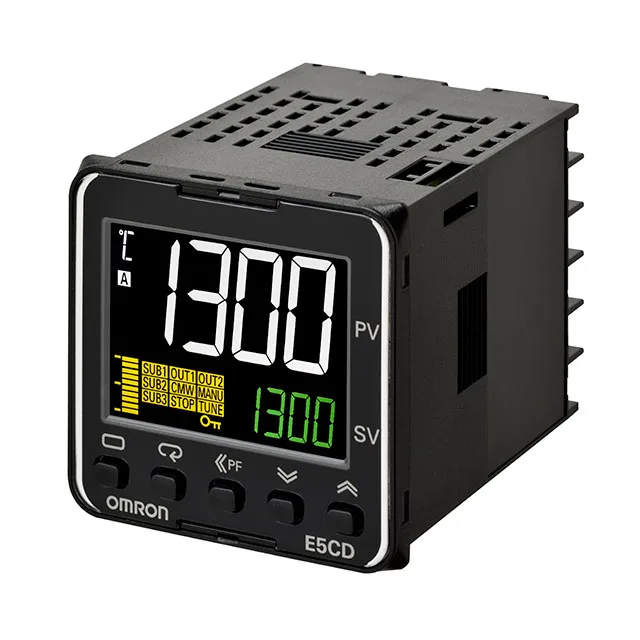

Omron E5CD-CX2A6M-000

MPNE5CD-CX2A6M-000
Active

CONTROL TEMP 4-20MA OUT 100-240V

Omron E5CD-CX2A6M-000 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

E5CD-CX2A6M-000 — Identification
ParameterValue
SeriesE5CD
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5CD-CX2A6M-000 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5CD-CX2A6M-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5CD-CX2A6M-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeAnalog, Relay (2)
E5CD-CX2A6M-000 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.587" (14.90mm), 0.280" (7.10mm)
E5CD-CX2A6M-000 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5CD-CX2A6M-000 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleScrew Terminal
MPN
E5CD-CX2A6M-000
