Omron E5CN-HTQ2MD-500 AC/DC24 — Process / Temperature Controllers

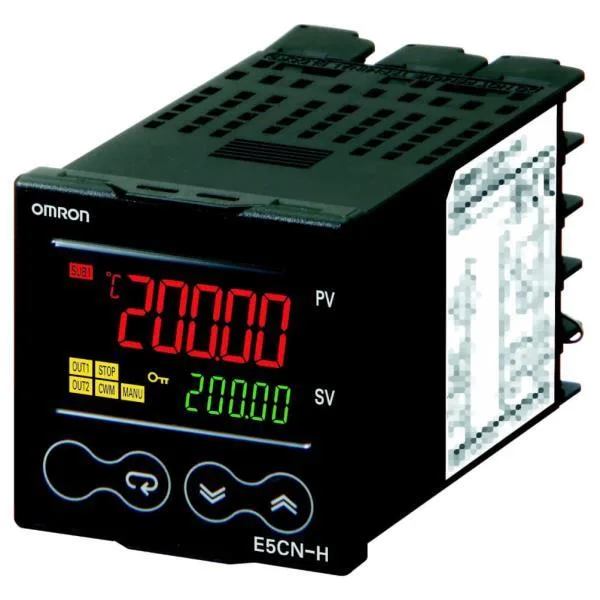

Omron E5CN-HTQ2MD-500 AC/DC24

MPNE5CN-HTQ2MD-500 AC/DC24
Active

CONTROL TEMP/PROC 24V PANEL MT

Omron E5CN-HTQ2MD-500 AC/DC24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E5CN-HTQ2MD-500 AC/DC24 — Identification
ParameterValue
SeriesE5CN-H
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5CN-HTQ2MD-500 AC/DC24 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5CN-HTQ2MD-500 AC/DC24 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
FeaturesOption Cards Available
E5CN-HTQ2MD-500 AC/DC24 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (2), Voltage (External SSR)
E5CN-HTQ2MD-500 AC/DC24 — Communication
ParameterValue
Communication interfacesOption Cards Available
E5CN-HTQ2MD-500 AC/DC24 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row5, 5
Character height0.433" (11.00mm), 0.256" (6.50mm)
E5CN-HTQ2MD-500 AC/DC24 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5CN-HTQ2MD-500 AC/DC24 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleScrew Terminal
E5CN-HTQ2MD-500 AC/DC24 — Other specifications
ParameterValue
Weight0.331 lb (150.14 g)
MPN
E5CN-HTQ2MD-500 AC/DC24
