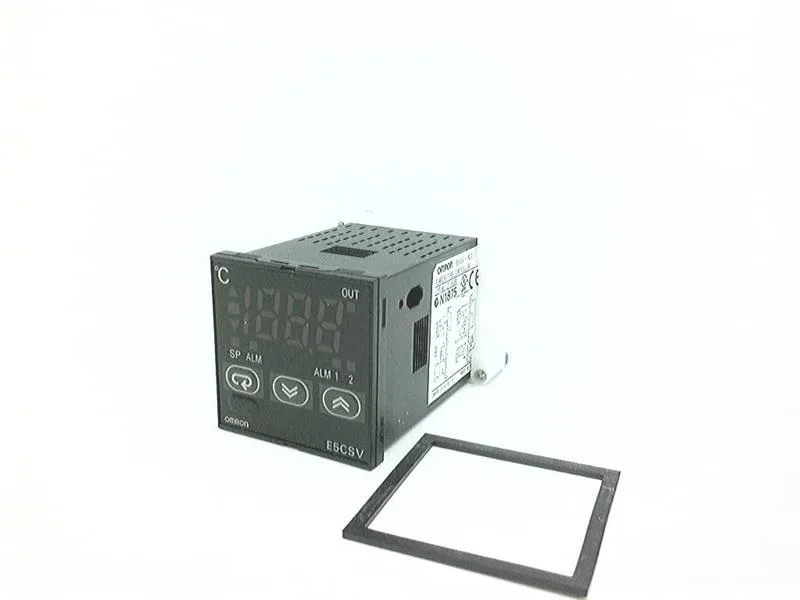

Omron E5CSV-R2T AC100-240
MPNE5CSV-R2T AC100-240
NRND
CONTROL TEMP RELAY OUT 100-240V
$287.77 – $489.23Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E5CSV |
| Type | Temperature Controller (RTD, Type J, K, L, N, R, T, U) |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Control method | On/Off, Proportional (PID) |
| Features | Sensor Fault Detection |
| Parameter | Value |
|---|---|
| Input range | -99°C ~ 1700°C |
| Output type | Relay (3) |
| Parameter | Value |
|---|---|
| Display type | LED - Red Characters |
| Characters per row | 3.5 |
| Character height | 0.531" (13.50mm) |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C ~ 55°C |
| Ingress protection (IP rating) | IP66 - Dust Tight, Water Resistant |
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Panel cutout dimensions | Square - 45.00mm x 45.00mm |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Weight | 0.265 lb (120.2 g) |
MPN
E5CSV-R2T AC100-240
