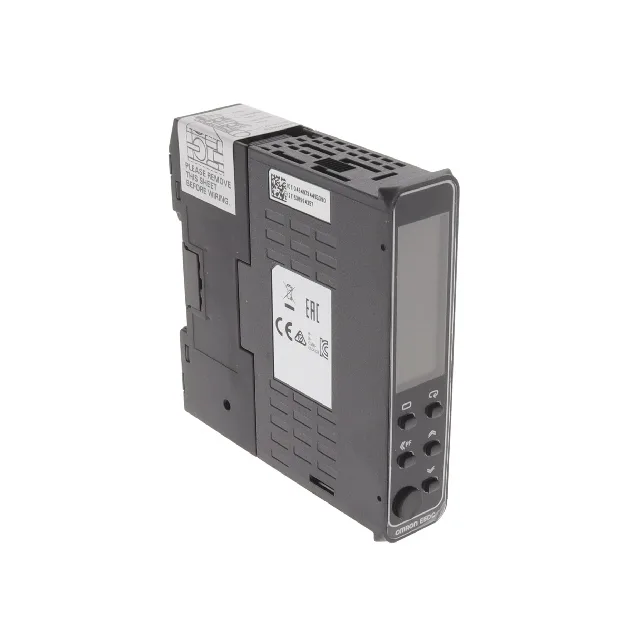

Omron E5DC-QX0DBM-015 — Process / Temperature Controllers

E5DC-QX0DBM-015

MPNE5DC-QX0DBM-015
Active

E5DC-QX0DBM-015 — datasheet specifications below.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5DC-QX0DBM-015 — Identification
ParameterValue
SeriesE5DC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5DC-QX0DBM-015 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5DC-QX0DBM-015 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5DC-QX0DBM-015 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeVoltage (External SSR)
E5DC-QX0DBM-015 — Communication
ParameterValue
Communication interfacesRS-485 (CompoWay/F, Modbus)
E5DC-QX0DBM-015 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.334" (8.50mm), 0.314" (8.00mm)
E5DC-QX0DBM-015 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP20
E5DC-QX0DBM-015 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleSpring Terminal

Product details

E5DC-QX0DBM-015 — datasheet specifications below.

MPN
E5DC-QX0DBM-015
