Omron E5DC-QX2ASM-800 — Process / Temperature Controllers

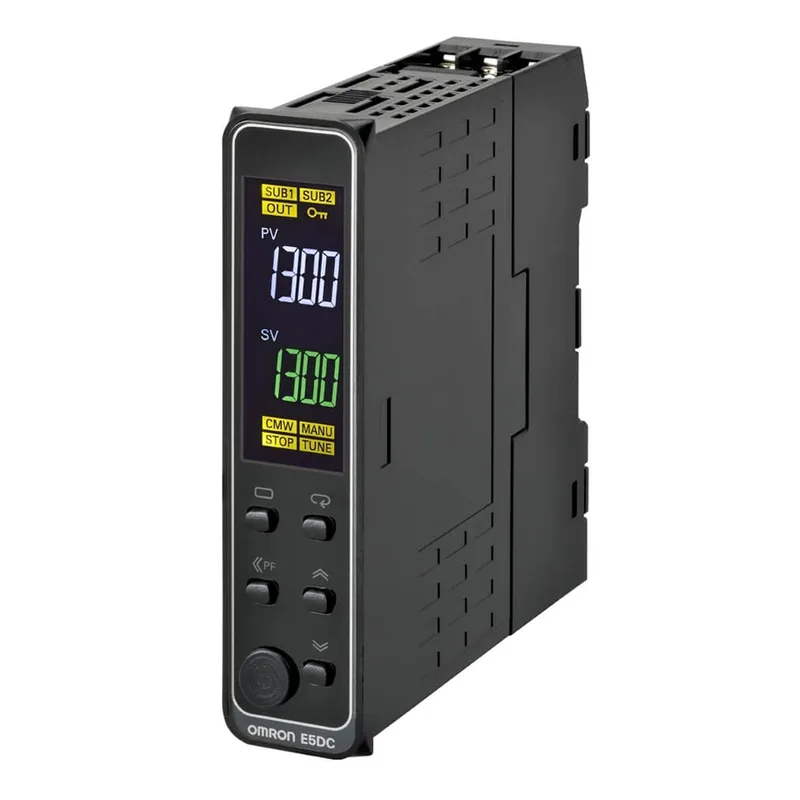

Omron E5DC-QX2ASM-800 Digital Temperature Controller, SSR Dr

MPNE5DC-QX2ASM-800

Omron E5DC-QX2ASM-800, Digital Temperature Controller, 1 Voltage Output for SSR, 100-240 VAC, Screw Terminals.

Omron E5DC-QX2ASM-800 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E5DC-QX2ASM-800 — Specifications
ParameterValue
Weight0.1 Kg
Options800
Product typeDigital Temperature Controller
Terminal typeS = Screw terminal blocks (Main Unit and Terminal Unit together)
Control outputsQX = 1 voltage output (for driving SSR)
Auxiliary outputs2 = Auxiliary output 2
Dimensions (LxWxH)2.25cm x 8.5cm x 9.6cm
Power supply voltageA = A in model number = 100 to 240 VAC, 50/60 Hz
Sensor (Temperature (Analog) input)M

Product details

Temperature Controller with SSR Drive

The Omron E5DC-QX2ASM-800 is a digital temperature controller with a single voltage output designed to drive an external SSR, with power supply rated 100-240 VAC for broad panel compatibility. The screw terminal block—common to the main unit and the terminal unit—provides a straightforward wiring interface for panel builders. Typical deployment is in industrial process control loops where a solid-state relay drives a resistive heater, leveraging the controller's dedicated SSR output.

MPN
E5DC-QX2ASM-800
