Omron E5DC-QX2DBM-002

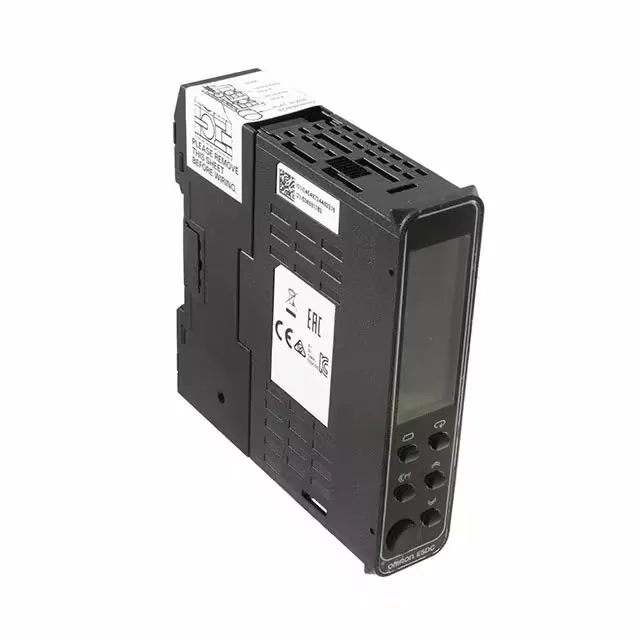

Omron E5DC-QX2DBM-002 Temperature Controller, DIN Rail

MPN E5DC-QX2DBM-002
Active

Omron E5DC series, E5DC-QX2DBM-002 process temperature controller, DIN-rail mount, dual relay + voltage (external SSR) outputs, RS-485 Modbus, 24 VAC/DC, spring-clamp terminals.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E5DC-QX2DBM-002 specifications
ParameterValue
SeriesE5DC
Output signalRelay (2), Voltage (External SSR)
Supply voltage24 VAC/DC
IP ratingIP20
ProtocolRS-485 (CompoWay/F, Modbus)
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
PackageBulk
Control methodOn/Off, Proportional (PID)

Product details

DIN-rail temp controller with universal inputs

The Omron E5DC-QX2DBM-002 is a DIN-rail-mount process temperature controller that accepts RTD, thermocouple (Types B, E, J, K, L, N, PLII, R, S, T, U, W), and analog signals (0-20 mA, 0-10 VDC) across a -200°C to 2300°C span. That range covers everything from cryogenic RTD loops to high-temp furnace Type B thermocouples out here in the grease — one controller for the whole plant's temperature zones. It runs on 24 VAC/DC and packs two relay outputs plus a voltage pulse output for driving an external SSR. The PID control loop handles On/Off or proportional action, and the dual-color LCD backlight shows four characters per row — readable across a panel aisle.

RS-485 Modbus and spring-clamp wiring

RS-485 communication supports CompoWay/F and Modbus protocols, so this controller talks directly to a PLC or SCADA host without an extra gateway. IP20 rated and rated for -10°C to 55°C ambient, it's meant for inside a control cabinet, not a washdown zone. The DIN-rail footprint keeps panel layout clean — snap it on next to the contactors and power supplies.

Active production and sourcing

The closest panel-mount sibling is the E5CC-TQX3D5M-003, which adds heater fault detection and an IP66 front bezel but requires a 45 mm square panel cutout instead of a DIN rail. If your BOM calls for a panel-mount form factor with the same thermocouple and Modbus capability, that's the alternate path — but for a DIN-rail cabinet build, this E5DC is the direct fit.

MPN
E5DC-QX2DBM-002
