Omron E5DC-RX2ABM-000 — Process / Temperature Controllers

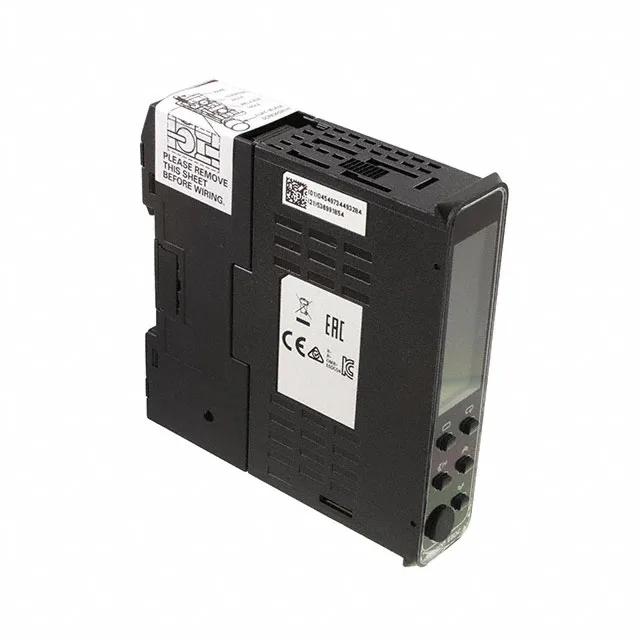

Omron E5DC-RX2ABM-000 Temperature Controller, 3 Relays, DIN

MPNE5DC-RX2ABM-000
Active

Omron E5DC-RX2ABM-000, a DIN-rail process temperature controller with 3 relay outputs, LCD dual-color backlight, spring terminals, 100-240VAC supply.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5DC-RX2ABM-000 — Identification
ParameterValue
SeriesE5DC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5DC-RX2ABM-000 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5DC-RX2ABM-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5DC-RX2ABM-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (3)
E5DC-RX2ABM-000 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.334" (8.50mm), 0.314" (8.00mm)
E5DC-RX2ABM-000 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP20
E5DC-RX2ABM-000 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleSpring Terminal

Product details

The E5DC-RX2ABM-000: The 3 relay outputs provide independent control for heat/cool staging or alarm annunciation without adding external interface modules. Power supply is universal AC: 100-240VAC, covering most global single-phase line voltages. No voltage selector or transformer adjustment is needed during commissioning.

Sourcing and compatibility notes

A panel originally specified around an E5CC series controller will require rewiring and a different mounting approach to use the E5DC-RX2ABM-000. The spring terminals and DIN-rail footprint are not compatible with panel-cutout installations.

Frequently asked questions

Does the E5DC-RX2ABM-000 replace the E5CC-CX2ASM-804 without rewiring?

No. The E5DC is DIN-rail mounted with spring terminals; the E5CC is panel-mount with screw terminals. They are not drop-in interchangeable. Mounting, wiring, and panel preparation differ.
