Omron E5DC-RX2DBM-000 — Process / Temperature Controllers

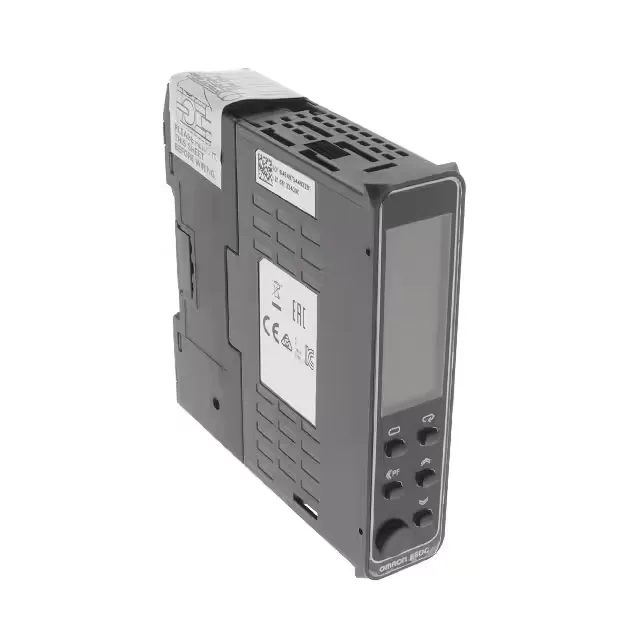

Omron E5DC-RX2DBM-000 Temperature Controller, DIN Rail, 24 V

MPNE5DC-RX2DBM-000
Active

Omron E5DC Series, Process, Temperature Controller, DIN Rail, 24VAC/DC, Relay (3) Output, LCD Dual-Color Display, Spring Terminal.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5DC-RX2DBM-000 — Identification
ParameterValue
SeriesE5DC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5DC-RX2DBM-000 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5DC-RX2DBM-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5DC-RX2DBM-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (3)
E5DC-RX2DBM-000 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.334" (8.50mm), 0.314" (8.00mm)
E5DC-RX2DBM-000 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP20
E5DC-RX2DBM-000 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleSpring Terminal

Product details

DIN-rail process controller with wide sensor support

The Omron E5DC-RX2DBM-000 is an active-production DIN-rail mount temperature controller from the E5DC series. It accepts RTD and thermocouple inputs (types B, E, J, K, L, N, PLII, R, S, T, U, W) plus analog signals (0–20 mA, 0–10 VDC). Three relay outputs handle alarm, event, or PID control stages. The dual-color LCD backlight shows four digits per row for process variable and setpoint, with a 0.334" (8.50 mm) and 0.314" (8.00 mm) character height. Operates on 24 VAC/DC supply, wired via spring terminals (no screwdriver required). Rated IP20 for enclosure use, with an ambient range of -10°C to 55°C.

Wiring and mounting notes

No screwdriver required. Clip onto DIN rail. The housing is IP20, so keep inside a rated enclosure.

Frequently asked questions

What input sensors does the E5DC-RX2DBM-000 support?

It accepts RTD and thermocouple types B, E, J, K, L, N, PLII, R, S, T, U, W, as well as analog 0–20 mA and 0–10 VDC signals.

Can the E5DC-RX2DBM-000 replace an E5CC-CX3A5M-004 in an existing panel?

No. The E5CC is panel-mount with a 45 mm square cutout and requires 100–240 VAC. The E5DC mounts on DIN rail and operates on 24 VAC/DC. The wiring also differs (screw vs spring terminals). Panel redesign would be required.

What is the supply voltage for the E5DC-RX2DBM-000?

24 VAC/DC.

How many relay outputs does it have?

Three relay outputs.
