Omron E5DC-RX2DBM-002 — Process / Temperature Controllers

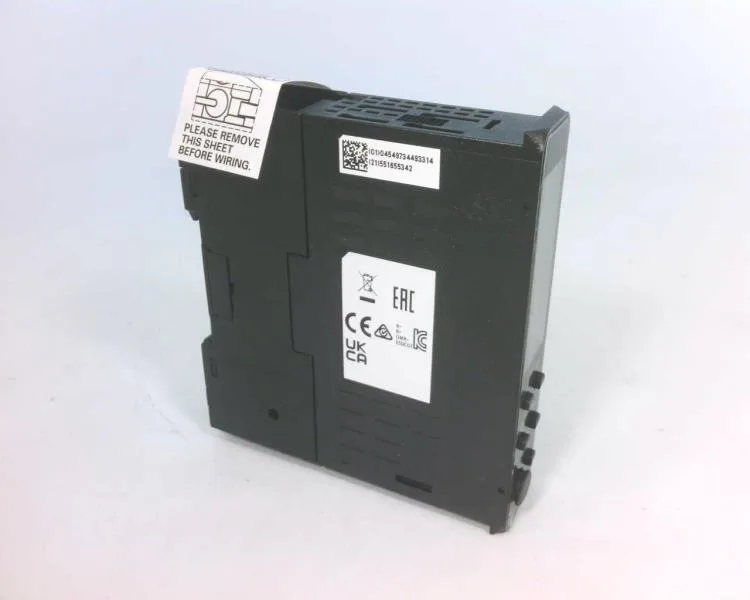

Omron E5DC-RX2DBM-002 DIN Rail Temperature Controller

MPNE5DC-RX2DBM-002
Active

Omron E5DC series, Process / Temperature Controller, DIN Rail mount, 3 x Relay outputs, RS-485 (CompoWay/F, Modbus), 24VAC/DC, Spring Terminal, IP20.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5DC-RX2DBM-002 — Identification
ParameterValue
SeriesE5DC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5DC-RX2DBM-002 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5DC-RX2DBM-002 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5DC-RX2DBM-002 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (3)
E5DC-RX2DBM-002 — Communication
ParameterValue
Communication interfacesRS-485 (CompoWay/F, Modbus)
E5DC-RX2DBM-002 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.334" (8.50mm), 0.314" (8.00mm)
E5DC-RX2DBM-002 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP20
E5DC-RX2DBM-002 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleSpring Terminal

Product details

The Omron E5DC-RX2DBM-002 is a DIN-rail-mounted process controller from the E5DC series. It reads RTD, thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W), 0–20 mA, or 0–10 VDC signals – covering temperatures from -200 °C to 2300 °C. Three relay outputs handle on/off or PID control, and the dual-color LCD shows both process value and setpoint. Communication is over RS-485 using either CompoWay/F or Modbus protocol, so it talks directly to a PLC or SCADA. DIN rail mount, IP20. Spring terminals; supply 24VAC/DC.

If your BOM originally called for an E5CC (panel-mount) like the E5CC-CQ3D5M-005, the E5DC-RX2DBM-002 will not drop into the same cutout. The E5CC carries IP66 for wet locations; the E5DC is IP20, strictly indoor panel. Functionally both handle the same sensor types and control methods, but the mounting and termination are completely different – expect to rework the enclosure and wiring if swapping.

Integration notes

RS-485 communicates via CompoWay/F or Modbus. 3 relay outputs. PID or On/Off control.

Frequently asked questions

What type of temperature controller is the E5DC-RX2DBM-002?

It is a Process / Temperature Controller accepting RTD, thermocouple (types B, E, J, K, L, N, PLII, R, S, T, U, W), and analog inputs (0–20 mA, 0–10 VDC).

What is the series of this controller?

It belongs to Omron's E5DC series.

Can the E5DC-RX2DBM-002 replace an E5CC-CQ3D5M-005 without rewiring?

No. The E5DC is DIN-rail mounted with spring terminals, while the E5CC is panel-mounted with screw terminals and requires a 45 mm square cutout. The wiring, mounting, and enclosure would need to be changed.

MPN
E5DC-RX2DBM-002
