Omron E5EC-CC4D5M-000 — Process / Temperature Controllers

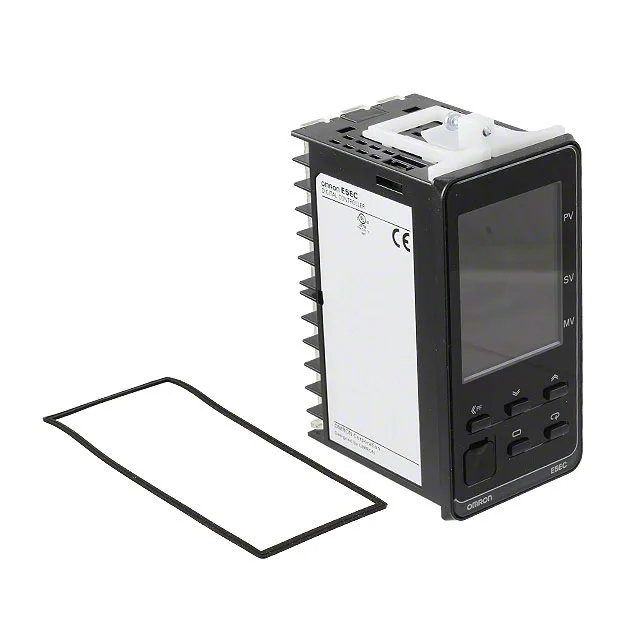

Omron E5EC-CC4D5M-000 Temp Controller, 24VAC/DC, PID, IP66

MPNE5EC-CC4D5M-000
Active

Omron E5EC series, Process / Temperature Controller (RTD, B/E/J/K/L/N/PLII/R/S/T/U/W, 0-20mA, 0-10VDC), 24VAC/DC, 2 analog + 4 relay outputs, PID, IP66 panel mount.

Omron E5EC-CC4D5M-000 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E5EC-CC4D5M-000 — Identification
ParameterValue
SeriesE5EC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5EC-CC4D5M-000 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5EC-CC4D5M-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5EC-CC4D5M-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeAnalog (2), Relay (4)
E5EC-CC4D5M-000 — Display
ParameterValue
Display typeLCD - Tri Color Characters, Backlight
Characters per row4, 4, 4
Character height0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)
E5EC-CC4D5M-000 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5EC-CC4D5M-000 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsRectangular - 92.00mm x 45.00mm
Termination styleScrew Terminal
E5EC-CC4D5M-000 — Other specifications
ParameterValue
Weight0.463 lb (210.01 g)

Product details

The E5EC-CC4D5M-000: Control method covers on/off and PID, with screw-terminal connections and an IP66-rated front bezel.

Panel fit vs E5CC peers

The E5EC uses a rectangular 92.00 mm x 45.00 mm panel cutout, while the E5CC series (e.g. E5CC-CX3A5M-005, E5CC-CQ3D5M-005) requires a square 45.00 mm x 45.00 mm opening. A direct drop-in swap is not possible without enlarging or altering the panel cutout. Output configuration also differs: the E5EC provides two analog outputs and four relay outputs; the E5CC-CX3A5M-005 has one analog and three relays. The E5EC also features a tri-color display versus the E5CC's dual-color.

Frequently asked questions

What's the closest functional second-source for the E5EC-CC4D5M-000?

The Omron E5CC series (e.g., E5CC-CX3A5M-005, E5CC-CQ3D5M-005) shares the same input range and PID control but uses a square 45x45 mm panel cutout instead of the E5EC's rectangular 92x45 mm. A direct swap is not possible without panel modification.

Will the E5EC-CC4D5M-000 drop into a panel cut out for the E5CC series?

No. The E5EC requires a rectangular 92.00 mm x 45.00 mm cutout, while E5CC controllers need a square 45.00 mm x 45.00 mm opening. Panel rework is required.

MPN
E5EC-CC4D5M-000
