Omron E5EC-CX4A5M-014

Omron E5EC-CX4A5M-014 Process Controller, 4 Outputs, RS-485

MPN E5EC-CX4A5M-014
Active

Omron E5EC-CX4A5M-014, Process Temperature Controller, 100-240 VAC, 4 relay/analog outputs, RS-485, IP66, Panel Mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E5EC-CX4A5M-014 specifications
ParameterValue
SeriesE5EC
Output signalAnalog, Relay (4)
Supply voltage100 to 240VAC
IP ratingIP66
ProtocolRS-485 (CompoWay/F, Modbus)
MountingPanel Mount
Temp operating max55 °C
Temp operating min-10 °C
Weight0.463 lb (210.01 g)
PackageBox
Control methodOn/Off, Proportional (PID)

Product details

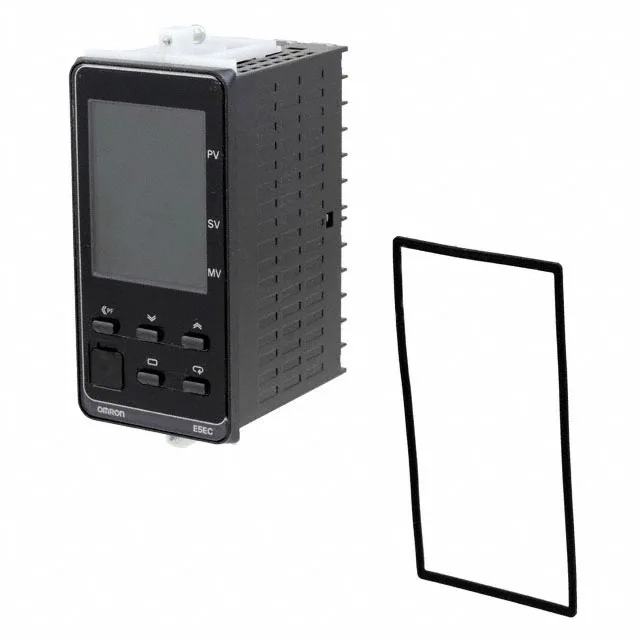

The Omron E5EC-CX4A5M-014 is a process and temperature controller from the E5EC series, accepting inputs from RTDs and thermocouples (B, E, J, K, L, N, PLII, R, S, T, U, W) as well as 0–20 mA or 0–10 VDC analog signals. It has four relay/analog outputs for controlling heaters, valves, or alarms, plus an event input for external triggers. The tri-color LCD shows four characters per row, and the controller communicates via RS-485 using CompoWay/F or Modbus protocols. A rectangular 92 × 45 mm panel cutout is required, and the front face is rated IP66 for washdown environments.

The most frequent cross-shop candidate is the smaller E5CC-CX3A5M-004, also from Omron. That unit fits a 45 × 45 mm square cutout and provides three relay/analog outputs instead of four. The E5EC uses the same operating range and universal input, but the larger rectangular footprint gives an extra control channel and a taller display (18 mm versus 15.2 mm for the top row). If your panel layout has a 92 × 45 mm slot and you need four outputs, the E5EC drops straight in. If you’re replacing an E5CC, the cutout is different — no easy swap without panel modification.

Integration notes

Mount the unit in a panel with the rectangular 92 × 45 mm cutout. Use screw terminals for power (100–240 VAC) and all wiring. The RS-485 bus defaults to CompoWay/F; set Modbus via the menu. The tri-color backlight can be programmed to change on alarm or process condition. The event input can be used to latch a second setpoint or reset latched alarms. Operating temperature is –10 to 55°C; derate display brightness at the high end. IP66 front tightens against hose-down, but the rear terminals remain behind the panel.

MPN
E5EC-CX4A5M-014
