Omron E5EC-QQ4D5M-000

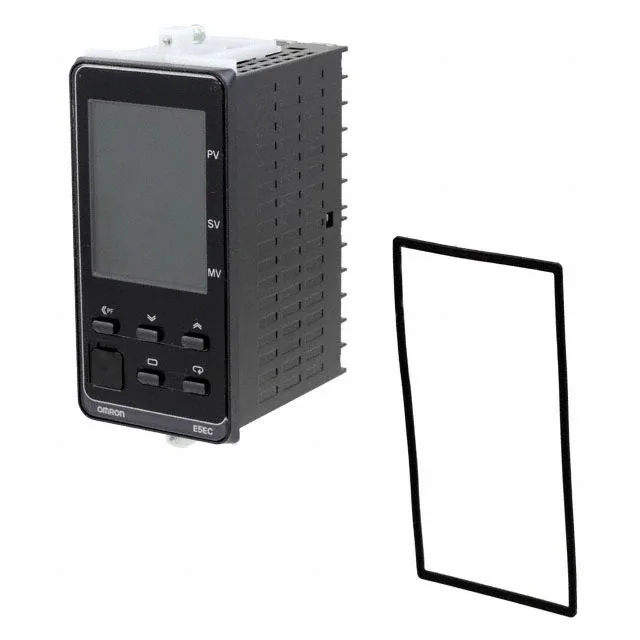

Omron E5EC-QQ4D5M-000 Process Controller, 24VAC/DC

MPN E5EC-QQ4D5M-000
Active

Omron E5EC series, Process & Temperature Controller, Type B/E/J/K/R/S/T, 24VAC/DC, 4 relay + 2 voltage (external SSR) outputs, IP66, rectangular panel mount 92x45 mm.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E5EC-QQ4D5M-000 specifications
ParameterValue
SeriesE5EC
Output signalRelay (4), Voltage (External SSR) (2)
Supply voltage24 VAC/DC
IP ratingIP66
MountingPanel Mount
Temp operating max55 °C
Temp operating min-10 °C
Weight0.463 lb (210.01 g)
PackageBox
Control methodOn/Off, Proportional (PID)

Product details

What this controller gives you

The E5EC-QQ4D5M-000: Outputs are four relays plus two voltage (external SSR) drive signals — enough for multi-stage heating/cooling or sequential valve control without adding expansion modules. The tri-color LCD backlight gives at-a-glance status with display heights between 7.8 and 18 mm.

The closest functional peer, the E5CC-CX3A5M-005, is a smaller unit with a square 45×45 mm cutout and a different output layout — three relays plus one analog output, no voltage-for-SSR drive, and a 100–240 VAC supply. It cannot interchange with this E5EC without reworking the panel cutout and the output wiring. The E5CC-CQ3D5M-005 does match the 24VAC/DC supply of this E5EC, but again uses a square opening and provides only three relays plus one analog output. It lacks the dedicated SSR voltage outputs that this E5EC carries. If you need four discrete or SSR-driven channels, the E5EC is the right choice; if your application can work with three relays and an analog signal, the E5CC is smaller and lighter.

Panel mount via the rectangular cutout — no adapter bezel needed. IP66 rating means the front is sealed against hose-directed water and dust, suitable for environments that get cleaned with a sprayer. Operating temperature range -10 to 55°C, so it lives in conditioned indoor panels, not unheated outdoor cabinets. Screw terminals accept standard copper conductors. The supply must be either 24 VAC or 24 VDC; the controller rectifies internally, so polarity on DC is not an issue but the supply voltage must stay within the rated tolerance.
