Omron E5EC-QX4ABM-000 — Process / Temperature Controllers

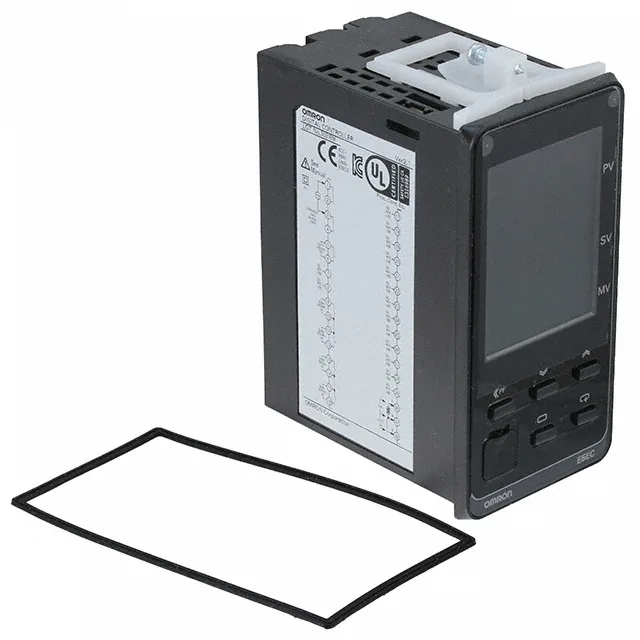

Omron E5EC-QX4ABM-000 Process/Temp Controller, 100-240VAC

MPNE5EC-QX4ABM-000
Active

Omron E5EC Process / Temperature Controller, E5EC-QX4ABM-000, 100-240VAC, 4 Relay + Voltage (SSR) Outputs, Spring Terminal, IP66, Panel Cutout 92x45mm.

Omron E5EC-QX4ABM-000 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E5EC-QX4ABM-000 — Identification
ParameterValue
SeriesE5EC
TypeProcess, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5EC-QX4ABM-000 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
E5EC-QX4ABM-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5EC-QX4ABM-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (4), Voltage (External SSR)
E5EC-QX4ABM-000 — Display
ParameterValue
Display typeLCD - Tri Color Characters, Backlight
Characters per row4, 4, 4
Character height0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)
E5EC-QX4ABM-000 — Environmental
ParameterValue
Operating temperature-10°C~55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5EC-QX4ABM-000 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsRectangular - 92.00mm x 45.00mm
Termination styleSpring Terminal
E5EC-QX4ABM-000 — Other specifications
ParameterValue
Weight0.463 lb (210.01 g)

Product details

How it compares to E5EC-QX4ABM-011

The E5EC-QX4ABM-000: The E5EC-QX4ABM-011 sibling adds heater fault detection and a fifth relay output, but shares exactly the same housing, panel cutout (92x45mm), spring terminal block, supply voltage, and IP66 rating. If your panel was wired for a -011 and you don't need the heater fault detection or all five relays, this unit drops in without any rewiring. If you do need those features, the -011 is the correct call.

Panel cutout is rectangular 92mm x 45mm. IP66 front seal; 100-240VAC supply.

Frequently asked questions

Will the E5EC-QX4ABM-000 drop into a panel designed for the E5EC-QX4ABM-011 without rewiring?

Physically yes — same size, same cutout, same spring terminal block. Electrically the -011 has an extra relay output and heater fault detection. If your wiring only uses four relays and you don't need heater fault detection, the swap works as-is.

What panel cutout does the E5EC-QX4ABM-000 require?

Rectangular 92mm x 45mm, as specified in the datasheet.

MPN
E5EC-QX4ABM-000
