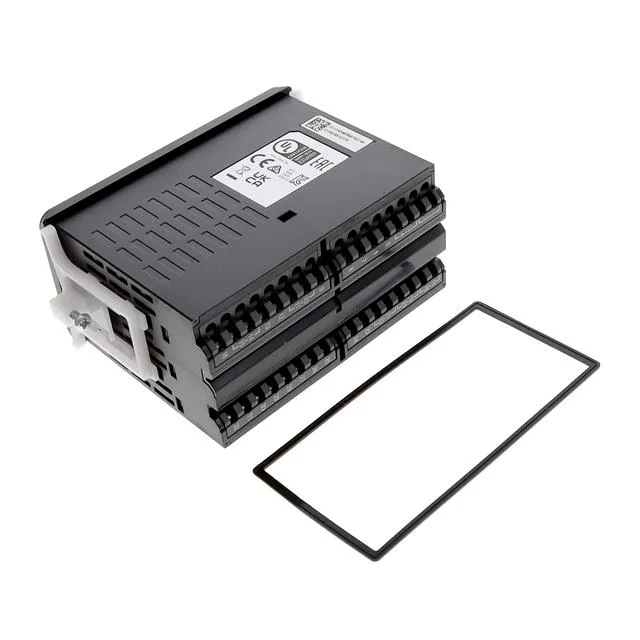

Omron E5EC-QX4ABM-008

Omron E5EC-QX4ABM-008 Temperature Controller, Relay/Voltage

MPN E5EC-QX4ABM-008
Active

Omron E5EC series temperature controller, E5EC-QX4ABM-008, relay and voltage (external SSR) outputs, RS-485 communications, PID control, IP66 front panel, spring terminal.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E5EC-QX4ABM-008 specifications
ParameterValue
SeriesE5EC
Output signalRelay (5), Voltage (External SSR)
Supply voltage100 to 240VAC
IP ratingIP66
ProtocolRS-485
MountingPanel Mount
Temp operating max55 °C
Temp operating min-10 °C
Weight0.463 lb (210.01 g)
PackageBox
Control methodOn/Off, Proportional (PID)

Product details

Active production — what that means for a BOM line

The E5EC-QX4ABM-008 is listed as Active by Omron — no end-of-life notice, no last-time-buy clock running. For a procurement freeze or a panel build schedule, this part is a stable line item that won't trigger a surprise redesign cycle.

What the outputs actually drive

Two output types on one controller: a relay bank (5 outputs) for on/off or alarm duties, plus a voltage pulse output to fire an external SSR. The relay side handles contactors, solenoid valves, or indicator loads; the SSR output gives you zero-cross switching for resistive heaters without relay contact wear. The input side accepts thermocouple types B, E, J, K, L, N, PLII, R, S, T, U, W, plus RTD and linear signals (0–20 mA, 0–10 VDC) covering a span from -200 °C to 2300 °C. That range brackets everything from cryogenic storage to furnace exhaust.

Panel fit and environmental seal

Panel-mount form factor with a rectangular cutout of 92.00 mm x 45.00 mm — the standard 1/4 DIN footprint. The front face carries an IP66 rating, meaning it withstands hose-down and dust ingress in washdown zones or outdoor cabinets. Spring terminals on the rear: no screw torque to manage, no loose strands on a vibrating panel door.

RS-485 on board — no extra comm module

Built-in RS-485 communications let the controller talk to a PLC or SCADA host without an add-on card. That saves a slot in the panel and one more part number on the BOM. The display shows three rows of tri-color characters — 18.00 mm, 11.00 mm, and 7.80 mm heights — so you can read process value, setpoint, and status at a glance across the plant floor.

Heater fault detection — what it catches

The Heater Fault Detection feature monitors current draw on the load side and flags a broken heater element or a failed SSR before the process drifts. For an extrusion line or a packaging sealer, that one feature cuts the mean-time-to-diagnose from hours to seconds.
