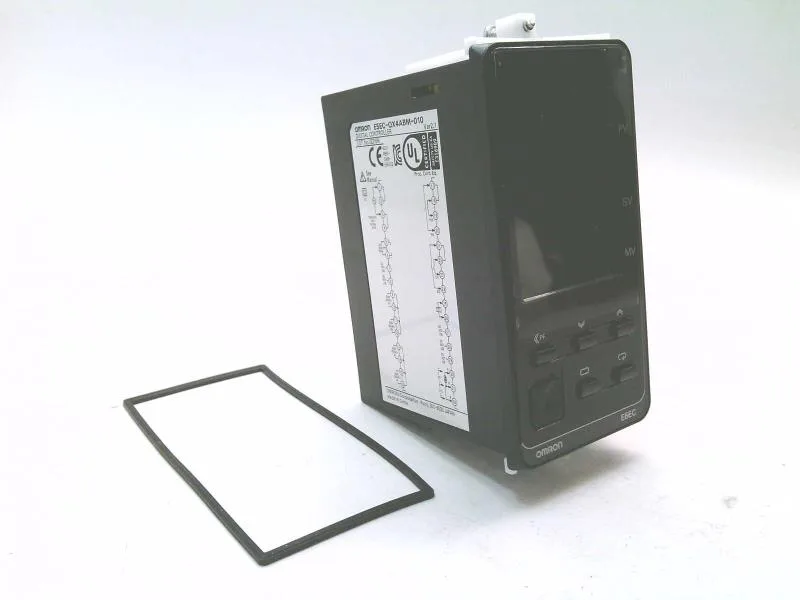

Omron E5EC-QX4ABM-010 — Process / Temperature Controllers

Omron E5EC-QX4ABM-010 Temp Controller, Relay/Voltage, 100-24

MPNE5EC-QX4ABM-010

Active

Omron E5EC, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W), E5EC-QX4ABM-010, On/Off, Proportional (PID), Relay (5), Voltage (External SSR), 100 ~ 240VAC, Panel Mount, Spring Terminal, IP66.

Add to RFQ

Omron E5EC-QX4ABM-010 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E5EC-QX4ABM-010 — Identification
Parameter	Value
Series	E5EC
Type	Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)

E5EC-QX4ABM-010 — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

E5EC-QX4ABM-010 — Performance
Parameter	Value
Control method	On/Off, Proportional (PID)
Features	Heater Fault Detection

E5EC-QX4ABM-010 — I/O
Parameter	Value
Input range	-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output type	Relay (5), Voltage (External SSR)

E5EC-QX4ABM-010 — Display
Parameter	Value
Display type	LCD - Tri Color Characters, Backlight
Characters per row	4, 4, 4
Character height	0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)

E5EC-QX4ABM-010 — Environmental
Parameter	Value
Operating temperature	-10°C ~ 55°C
Ingress protection (IP rating)	IP66 - Dust Tight, Water Resistant

E5EC-QX4ABM-010 — Mechanical
Parameter	Value
Mounting type	Panel Mount
Panel cutout dimensions	Rectangular - 92.00mm x 45.00mm
Termination style	Spring Terminal

Product details

Why the ratings matter for your BOM line

The E5EC-QX4ABM-010: Heater fault detection is built in — it monitors current through the load and flags a broken heater or tripped SSR. That saves a separate current transformer and alarm relay in the panel. Control method includes on/off or full PID with auto-tune, so it fits simple oven or complex ramp-soak profiles. Input range spans -200°C to 2300°C with thermocouples, plus 0–20 mA and 0–10 VDC. That means one part number covers your J/K/R/S/T thermocouple runs and any 4-20 mA transmitter loop — no jumper swapping or range-card ordering.
