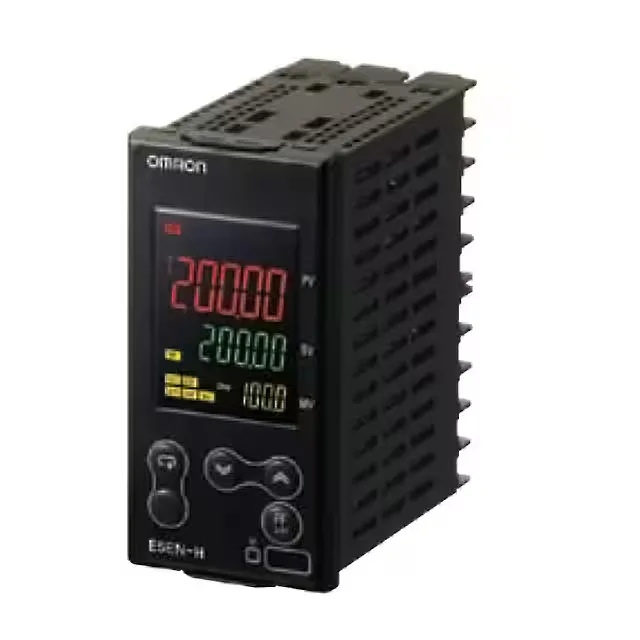

Omron E5EN-HTAA3BFMD-500 AC/DC24
MPNE5EN-HTAA3BFMD-500 AC/DC24
Active
CONTROL TEMP/PROC RELAY OUT 24V
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E5EN-HT |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
Performance
| Parameter | Value |
|---|---|
| Control method | On/Off, Proportional (PID) |
| Features | Event Input, Option Cards Available |
I/O
| Parameter | Value |
|---|---|
| Input range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Output type | Relay (3), Option Cards Available |
Communication
| Parameter | Value |
|---|---|
| Communication interfaces | Option Cards Available |
Display
| Parameter | Value |
|---|---|
| Display type | LCD - Tri Color Characters, Backlight |
| Characters per row | 5, 5, 4 |
| Character height | 0.465" (11.80mm), 0.319" (8.10mm), 0.228" (5.80mm) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -10°C~55°C |
| Ingress protection (IP rating) | IP66 - Dust Tight, Water Resistant |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Panel cutout dimensions | Rectangular - 92.00mm x 45.00mm |
| Termination style | Screw Terminal |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.573 lb (259.91 g) |
MPN
E5EN-HTAA3BFMD-500 AC/DC24
