Omron E5GC-RX1DCM-000 — Process / Temperature Controllers

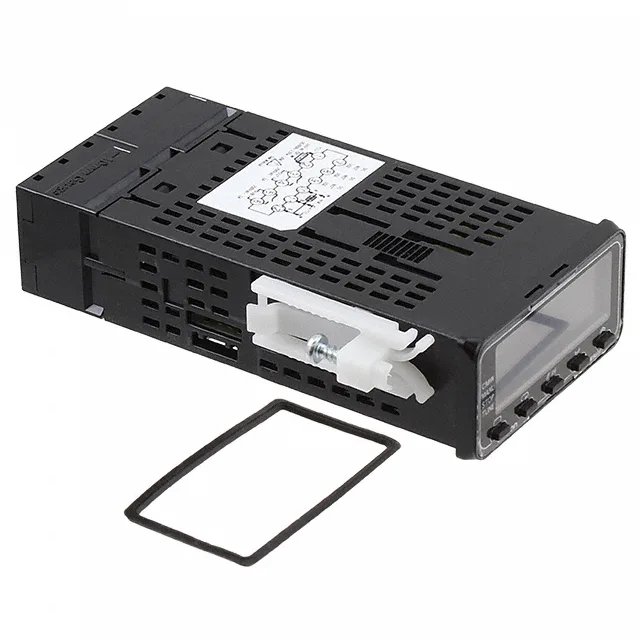

Omron E5GC-RX1DCM-000

MPNE5GC-RX1DCM-000
Active

CONTROL TEMP/PROC RELAY OUT 24V

Omron E5GC-RX1DCM-000 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E5GC-RX1DCM-000 — Identification
ParameterValue
SeriesE5GC
TypeProcess, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W)
E5GC-RX1DCM-000 — Electrical
ParameterValue
Supply voltage24VAC/DC
E5GC-RX1DCM-000 — Performance
ParameterValue
Control methodOn/Off, Proportional (PID)
E5GC-RX1DCM-000 — I/O
ParameterValue
Input range-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output typeRelay (2)
E5GC-RX1DCM-000 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row4, 4
Character height0.413" (10.50mm), 0.197" (5.00mm)
E5GC-RX1DCM-000 — Environmental
ParameterValue
Operating temperature-10°C ~ 55°C
Ingress protection (IP rating)IP66 - Dust Tight, Water Resistant
E5GC-RX1DCM-000 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsRectangular - 45.00mm x 22.20mm
Termination styleSpring Terminal
E5GC-RX1DCM-000 — Other specifications
ParameterValue
Weight0.176 lb (79.83 g)
MPN
E5GC-RX1DCM-000
