Omron F3SG-4RA0270-30

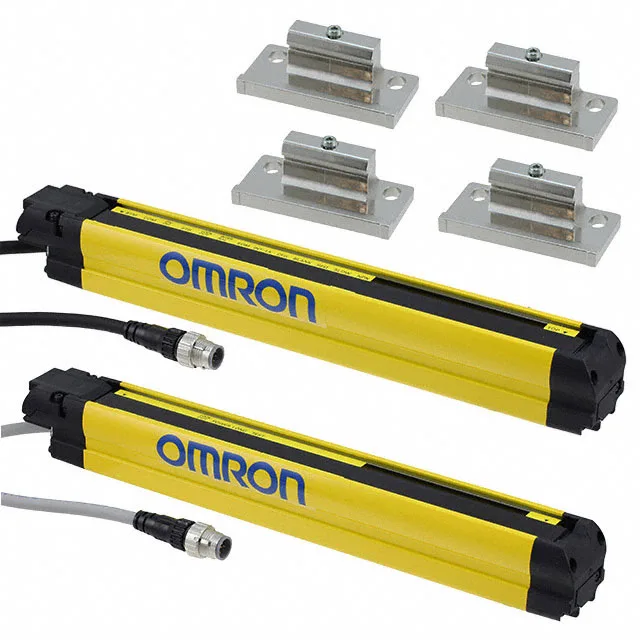

Omron F3SG-4RA0270-30 Safety Light Curtain, 30mm Detection

MPN F3SG-4RA0270-30
Active

Omron F3SG-RA series safety light curtain, F3SG-4RA0270-30, 30mm detection capability, 270mm protective height, 24VDC, IP67, active.

$792.48 – $1,369.31 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

F3SG-4RA0270-30 specifications
ParameterValue
SeriesF3SG-RA
Supply voltage24 VDC
IP ratingIP67
Temp operating max55 °C
Temp operating min-10 °C
PackageBulk

Product details

That 30mm figure means it catches fingers reaching into the hazard zone, meeting the finger-protection class per IEC 61496-1. It runs on 24VDC and covers a protective height of 270mm, with 12 beams spaced at a 20mm pitch.

Operating range spans 0.3m to 20.0m, so it fits both tight machine guarding and longer conveyor zones. Built-in blanking and muting functions let you ignore fixed obstructions (like a machine frame) or pause the curtain during a pallet pass without disabling safety. That saves wiring external bypass relays. The 12-beam array with 20mm pitch gives a 270mm protected zone — tall enough for hand/arm access on most small to mid-size machines.

MPN
F3SG-4RA0270-30
