What this light curtain does on your line

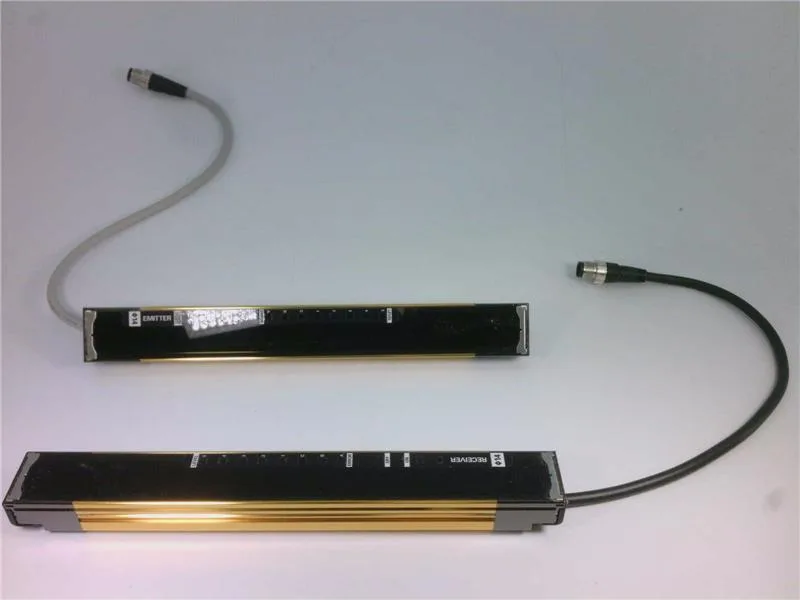

The Omron F3SJ-A0299P14 is a safety light curtain with 14 mm detection capability for finger protection. 32 beams cover a 299 mm protective height, operating range 0.2 m to 9.0 m. Runs on 24 VDC and is rated IP65 — dust-tight and protected against water jets — so it holds up in washdown environments on food processing or packaging lines. The built-in blanking and muting functions let you configure fixed obstructions (like a conveyor frame) in the field of view and suppress the safety output during a defined material pass cycle, which saves adding external bypass logic.
Deployment context
Mounts with standard brackets to machine frames or T-slot extrusion. The 9 mm beam pitch and 14 mm detection capability are the deciding specs for finger safety.
