What it is and what it guards

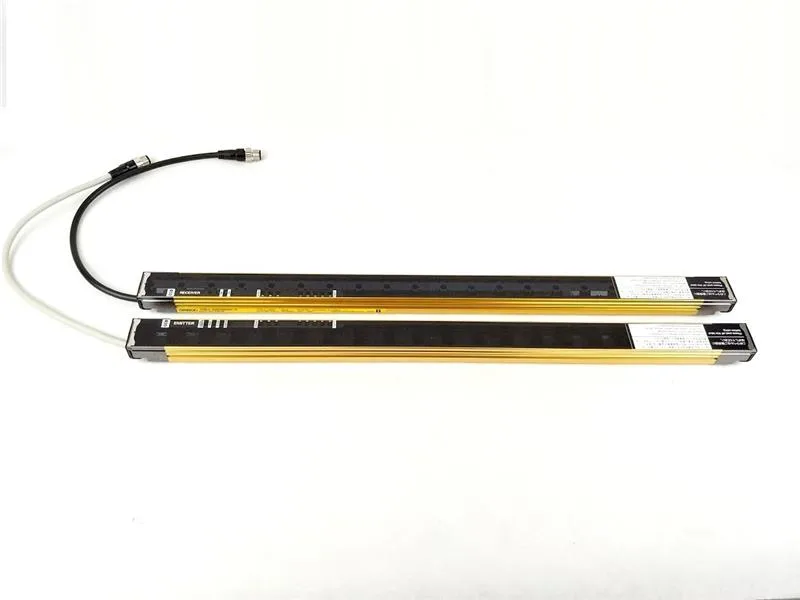

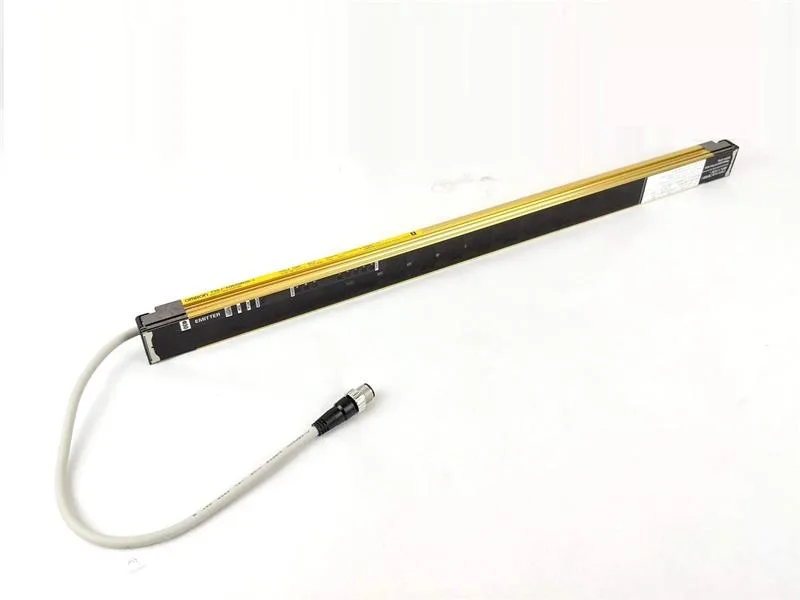

The Omron F3SJ-A0520N30 is a type-4 safety light curtain from the F3SJ series, rated for hand and arm protection with a 30mm detection capability. Its 21 beams cover a 520mm protective height, and the operating range spans 0.2m to 9.0m, making it suitable for guarding access to hazardous machine zones like press brakes, robotic cells, or packaging lines where a person reaching into the danger area must be detected.
What the ratings mean for fit
The 30mm detection capability means the curtain catches a hand or arm reaching past the beam plane — that is finger-protection class per IEC 61496-1, so it is the right choice for point-of-operation guarding where smaller gaps are not required. The 520mm protective height covers a typical waist-to-shoulder zone for a standing operator; if the hazard zone is taller, multiple units stack. The 0.2m minimum range allows mounting close to the machine frame, while the 9.0m maximum covers wider access points. IP65 rating means the sensor heads and optics are dust-tight and protected against low-pressure water jets — suitable for washdown environments in food processing or general industrial floors where hosing down the machine is routine. The 24VDC supply is standard for safety circuits; plan for a dedicated 24V power source, not shared with noisy inductive loads.
Integration notes
The F3SJ series supports blanking and muting functions, which allow the curtain to ignore fixed obstructions (like a workpiece fixture) or temporarily bypass during a material feed cycle. These features are configured via the controller, not the sensor heads themselves. Mounting brackets are typically ordered separately; the sensor heads are compact enough for standard extruded-aluminum framing.
