The Omron F3SJ-E0465P25 is a Type 4 safety light curtain from the F3SJ-E series, sized for hand protection with a 25mm detection capability. That 25mm figure means it catches fingers reaching into the hazard zone — finger-protection class per IEC 61496-1 — so it is the right choice for guarding access points where operators' hands might enter a machine's danger area. Protective height is 465mm, delivered by 22 infrared beams spaced at a 20mm pitch. The operating range spans 0.2m to 7.0m, which covers most reach-in guarding applications on conveyors, assembly stations, and packaging lines. Supply is 24VDC, standard for safety circuits in industrial control panels. IP65-rated housing means the emitter and receiver withstand washdown and dust ingress — suitable for food-and-bev lines, machining centers with coolant spray, or any environment where hose-down cleaning is routine.

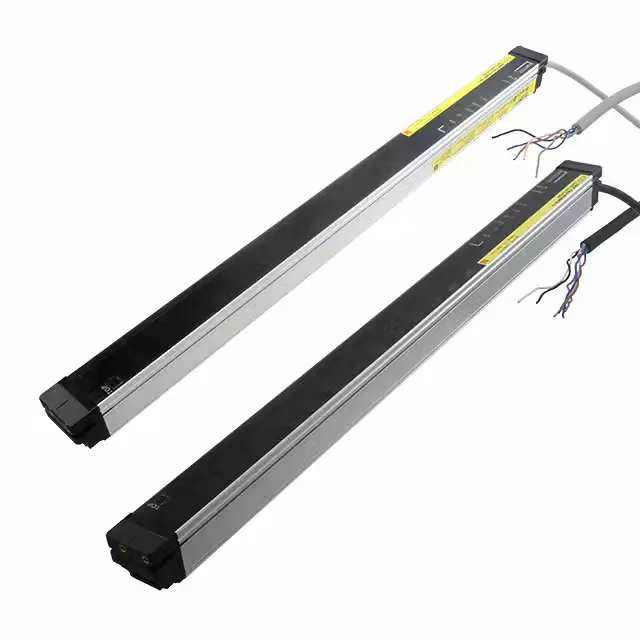

Omron F3SJ-E0465P25 Light Curtain, Hand Protection 25mm, 465
MPNF3SJ-E0465P25
End of Life
Omron F3SJ-E series safety light curtain, F3SJ-E0465P25, hand protection type, 25mm detection capability, 465mm protective height, 22 beams at 20mm pitch, 0.2-7.0m range, IP65, 24VDC.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | F3SJ-E |
| Parameter | Value |
|---|---|
| Detection capability (resolution) | 25mm |
| Protection | Hand |
| Protective height | 465mm |
| Operating range (sensing distance) | 0.2m ~ 7.0m |
| Number of beams | 22 |
| Beam pitch | 20mm |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature | -10°C ~ 55°C |
| Ingress protection (IP) | IP65 - Dust Tight, Water Resistant |
Product details
Frequently asked questions
What is the detection capability and what does it protect?
The detection capability is 25mm, which corresponds to hand protection per IEC 61496-1. This means the light curtain detects fingers entering the protected area, not just larger body parts.
What is the protective height and number of beams?
The protective height is 465mm, achieved with 22 beams spaced at a 20mm pitch.
What is the operating range and supply voltage?
The operating range is 0.2m to 7.0m, and the supply voltage is 24VDC.
What is the ingress protection rating?
The housing is rated IP65, dust-tight and protected against water jets, making it suitable for washdown environments.
