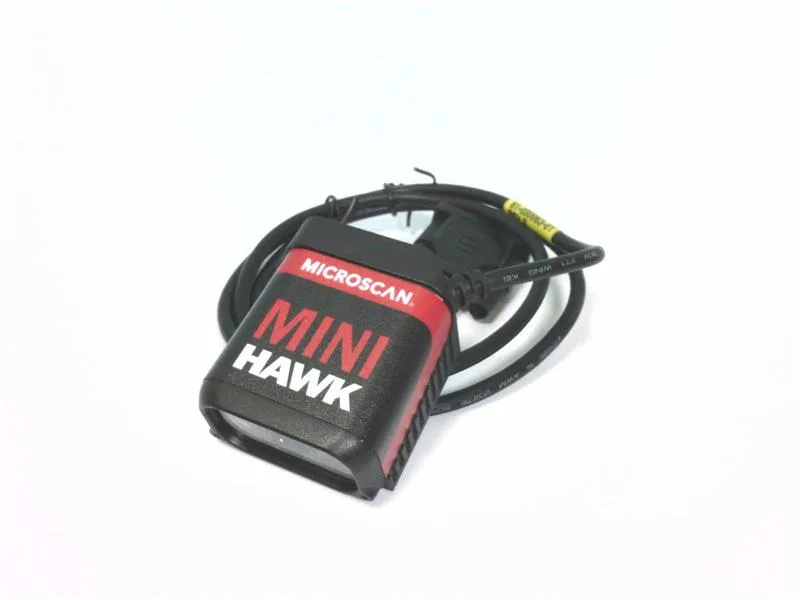

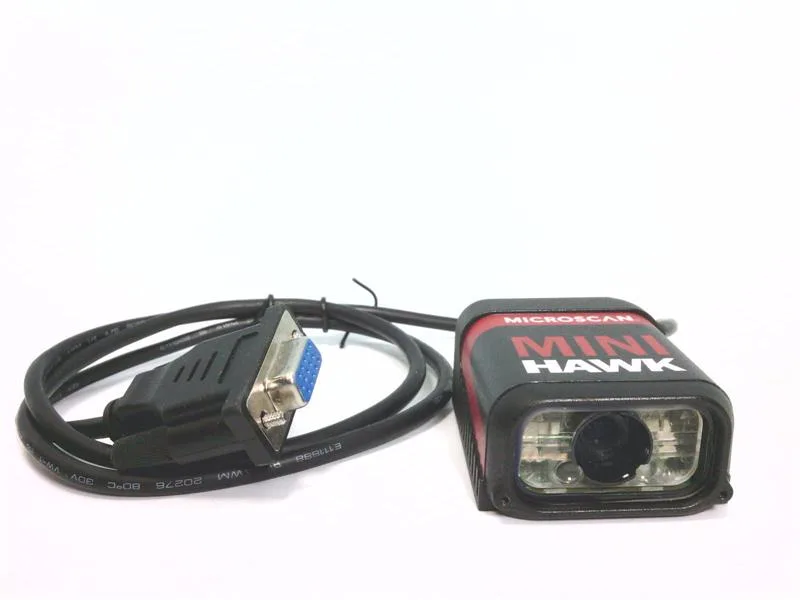

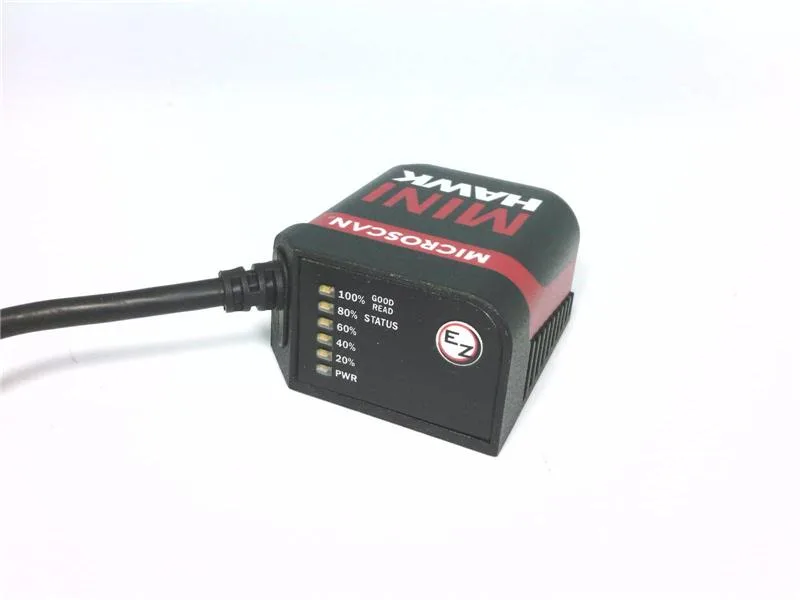

Omron FIS-6300-4007G
MPNFIS-6300-4007G
Active
IMAGING CAMERA CHASSIS MOUNT
$1,442.72Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Device type | Imaging Camera |
| Series | MINI Hawk |
Imaging & Optics
| Parameter | Value |
|---|---|
| Resolution | 1.3MP, 1280 x 1024 (1,310,720 Pixels) |
| Visual field, max. | 241.0mm x 241.0mm |
| Visual field, min. | 81.0mm x 81.0mm |
| Installation distance | 25.0mm ~ 279.0mm |
Illumination
| Parameter | Value |
|---|---|
| Light source | Integrated (Blue, Green) |
Performance
| Parameter | Value |
|---|---|
| Scan rate | 10 scans/s |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount |
| Termination style | Cable with Connector |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | 0°C ~ 40°C |
| Ingress protection (IP rating) | IP54 - Dust Protected, Water Resistant |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.126 lb (57.15 g) |
MPN
FIS-6300-4007G
