Omron FQ-CR15100F-M — Machine Vision & Barcode

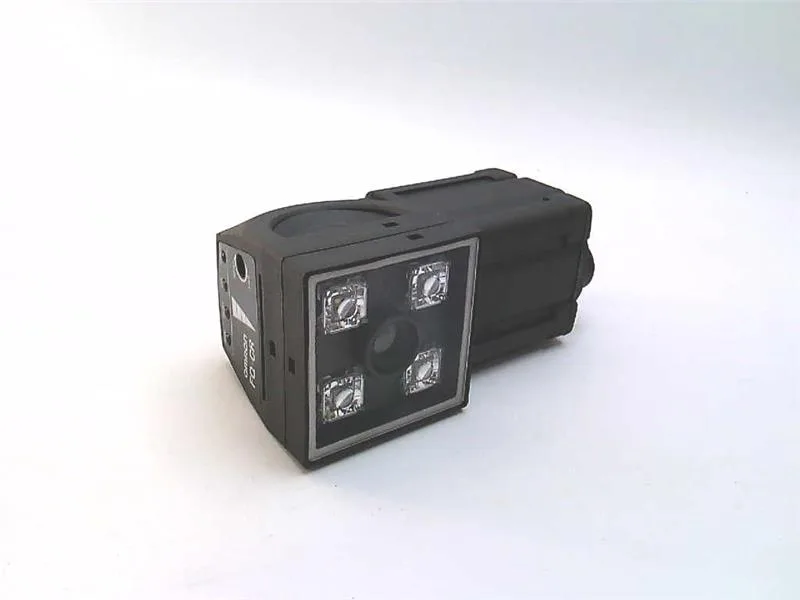

Omron FQ-CR15100F-M Multi Code Reader, 0.4MP, IP67

MPNFQ-CR15100F-M
Active

Omron FQ-CR15100F-M Bar Code Readers.

$2,637.51Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FQ-CR15100F-M — Identification
ParameterValue
Device typeMulti Code Reader
SeriesFQ-CR1
FQ-CR15100F-M — Imaging & Optics
ParameterValue
Resolution0.4MP, 752 x 480 (360,960 Pixels)
Sensor typeCMOS
Visual field, max.153.0mm x 240.0mm
Visual field, min.33.0mm x 53.0mm
Installation distance220.0mm ~ 970.0mm
FQ-CR15100F-M — Illumination
ParameterValue
Light sourceIntegrated (White)
FQ-CR15100F-M — Electrical
ParameterValue
Supply voltage24VDC
FQ-CR15100F-M — Mechanical
ParameterValue
Mounting typeChassis Mount
Termination styleCircular
FQ-CR15100F-M — Environmental
ParameterValue
Operating temperature0°C ~ 50°C
Ingress protection (IP rating)IP67 - Dust Tight, Waterproof

Product details

Overview

The FQ-CR15100F-M: It reads codes at an install distance of 220.0mm to 970.0mm with a field of view spanning 33.0° to 153.0°, making it suited for medium-range reading on conveyor or gantry applications.

Comparison with FQ-CR15100N-M

The FQ-CR15100N-M shares the same series, sensor, and IP67 rating but reads at a closer install distance of 32.0mm to 380.0mm with a wider field of view of 18.0° to 191.0°. Choose the FQ-CR15100F-M for longer standoff; the N-M variant for tight, near-field mounting.

MPN
FQ-CR15100F-M
