Omron FQ2-S20100F — Machine Vision & Barcode

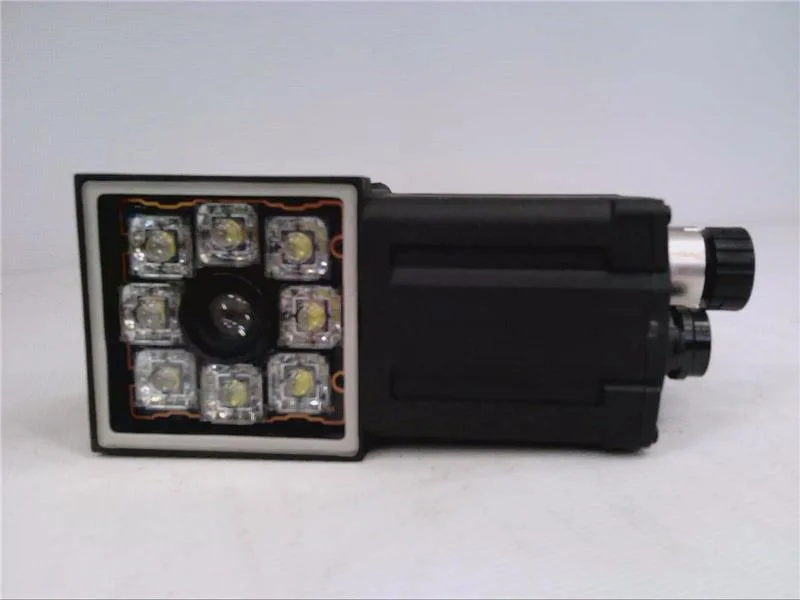

Omron FQ2-S20100F FQ2-S2 Color Camera, 0.4MP, IP67

MPNFQ2-S20100F

Active

Omron FQ2-S2 FQ2-S20100F imaging camera, color CMOS, 0.4MP 752 x 480, 24 V, IP67, chassis mount, circular terminal, integrated white LED light.

$1,267.46 – $2,485.62Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FQ2-S20100F — Identification
Parameter	Value
Device type	Imaging Camera
Series	FQ2-S2

FQ2-S20100F — Imaging & Optics
Parameter	Value
Resolution	0.4MP, 752 x 480 (360,960 Pixels)
Sensor type	CMOS
Visual field, max.	153.0mm x 240.0mm
Visual field, min.	33.0mm x 53.0mm
Installation distance	220.0mm ~ 970.0mm

FQ2-S20100F — Illumination
Parameter	Value
Light source	Integrated (White)

FQ2-S20100F — Electrical
Parameter	Value
Supply voltage	24VDC

FQ2-S20100F — Mechanical
Parameter	Value
Mounting type	Chassis Mount
Termination style	Circular

FQ2-S20100F — Environmental
Parameter	Value
Operating temperature	0°C ~ 50°C
Ingress protection (IP rating)	IP67 - Dust Tight, Waterproof

FQ2-S20100F — Other specifications
Parameter	Value
Weight	0.353 lb (160.12 g)

Product details

Overview

It carries an integrated white LED light source, mounts via chassis mount, and connects through a circular terminal — suited for fixed-mount inspection stations where the working distance falls between 220.0mm and 970.0mm.

Resolution and working distance vs FQ2-S40100F-08

The FQ2-S20100F resolves 0.4MP (752 x 480), while the FQ2-S40100F-08 delivers 0.8MP (928 x 828) — a 2x pixel count advantage for finer detail inspection, but at a narrower 0°C to 40°C operating range versus the FQ2-S20100F's 0°C to 50°C. Working distance also differs: the FQ2-S20100F covers 220.0mm to 970.0mm, whereas the FQ2-S40100F-08 spans 220.0mm to 970.0mm — identical in this case, so mounting flexibility is the same.
