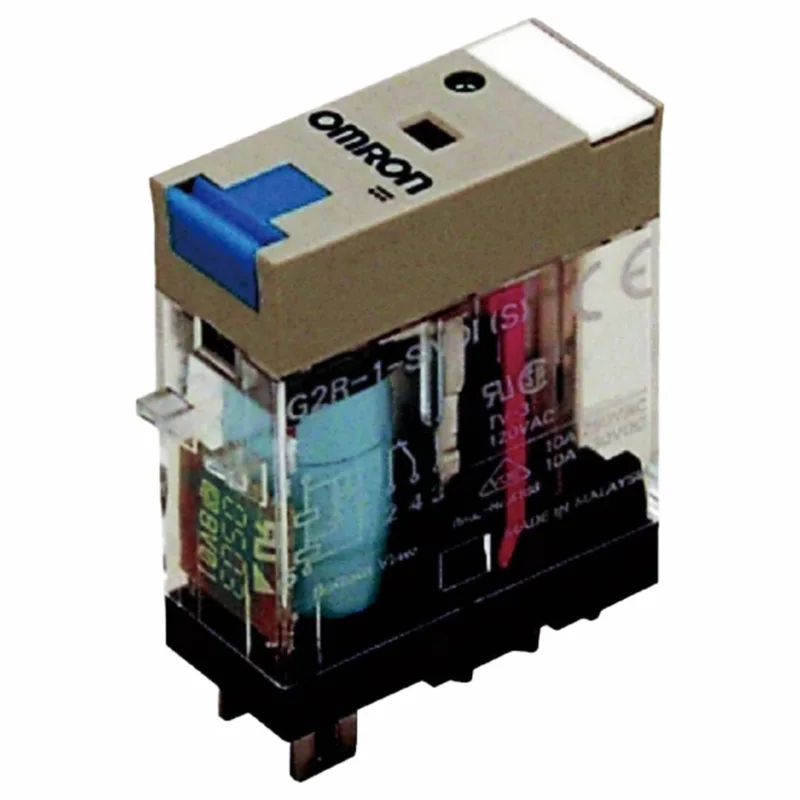

Omron G2R-1-SNDI DC24(S) — General Purpose Relays

Omron G2R-1-SNDI DC24(S) G2RS Relay, SPDT 24V DC, 10A

MPNG2R-1-SNDI DC24(S)

Omron G2RS Series, General Purpose Relay, SPDT, 24V DC Coil, 10 A @ 250V AC / 10 A @ 30V DC Contacts, LED Indicator, Push-To-Test Button, 5 Pin Terminals.

$3.64Ref. price · indicative, final on quote
Omron G2R-1-SNDI DC24(S) datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

G2R-1-SNDI DC24(S) — Identification
ParameterValue
SeriesG2RS
G2R-1-SNDI DC24(S) — Contacts & Switching
ParameterValue
Contact formSPDT
Contact rating (AC)7.5 A @ 250V10 A @ 250V
Mechanical life (operations)10,000,000; 20,000,000
Electrical life (operations)100,000
G2R-1-SNDI DC24(S) — Coil & Supply
ParameterValue
Coil voltage24V DC
G2R-1-SNDI DC24(S) — Electrical
ParameterValue
Dielectric strength1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity; 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
G2R-1-SNDI DC24(S) — Function & Indication
ParameterValue
Status indicatorLED Indicator
Push-to-test buttonManual Push Test Button
G2R-1-SNDI DC24(S) — Mechanical
ParameterValue
Electrical connection typePin
Number of pins/terminals5
G2R-1-SNDI DC24(S) — Other specifications
ParameterValue
Contact rating5 A @ 30V10 A @ 30V
Coil voltage (Nominal@60Hz)24V DC

Product details

The Omron G2R-1-SNDI DC24(S) is a G2RS-series general-purpose relay with a 24V DC coil and SPDT contact arrangement.

The SPDT form (one common, one N.O., one N.C.) covers simple on/off or changeover logic. Dielectric strength is 5,000V AC between coil and contacts, so it isolates the 24V DC control side from the load circuit cleanly. The LED indicator and push-to-test button are on the relay itself, which helps during panel commissioning — you can cycle the relay manually without energizing the coil, and the LED confirms coil power is present. Electrical durability is rated at 100,000 operations at rated load; mechanical durability reaches 10,000,000 to 20,000,000 cycles, so the wear life is in the coil and contacts, not the mechanism.

Frequently asked questions

What is the closest functional second-source to the G2R-1-SNDI DC24(S)?

The G2R-2-SNDI DC24(S) is the DPDT sibling in the same G2RS series with the same 24V DC coil. It has two sets of changeover contacts (8 pins) versus the SPDT single set (5 pins) on the G2R-1-SNDI DC24(S), so it will not drop into the same socket without rewiring. The AC contact rating on the DPDT version is lower at 5 A @ 250V, so if you need the full 10 A per pole, the SPDT version is the correct choice.

Where can I buy the G2R-1-SNDI DC24(S)?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the coil voltage and contact form of the G2R-1-SNDI DC24(S)?

The coil voltage is 24V DC and the contact form is SPDT (single-pole double-throw).
