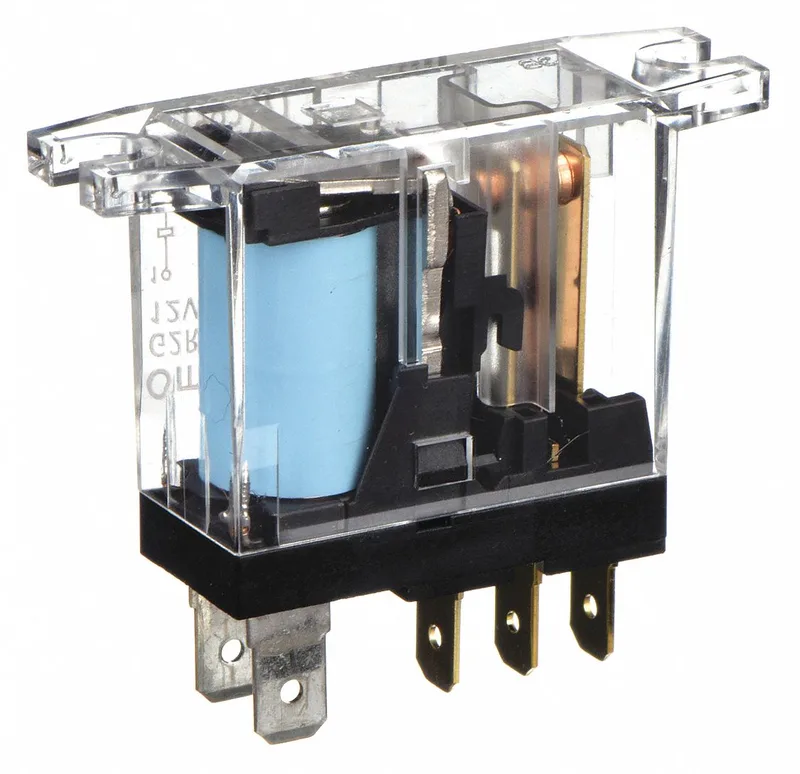

Omron G2R-1-T DC12
MPNG2R-1-T DC12
OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 12V DC, SPDT
$7.56 – $8.80Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G2R Power Series |
| Horsepower | 1/3 hp |
| Mounting | Surface (Top Flange) |
| Terminal_type | Tab |
| Terminal_count | 5 |
| Dielectric | 1,000 V AC Between Contacts of Same Polarity; 3,000 V AC Between Contacts of Different Polarity; 5,000 V AC Between Coil and Contacts |
| Motor_rated | Yes |
| Contact form | 1-pole, SPDT (1 form C) |
| Sealing_type | Flux Sealed |
| Coil voltage | 12 |
| Contact rating | 10 |
| Has_push_to_test | No Test Button |
| Switching current | 10 |
| Has_status_indicator | No Indicator |
| Electrical_life_cycles | 100000 |
| Mechanical_life_cycles | 20000000 |
MPN
G2R-1-T DC12
