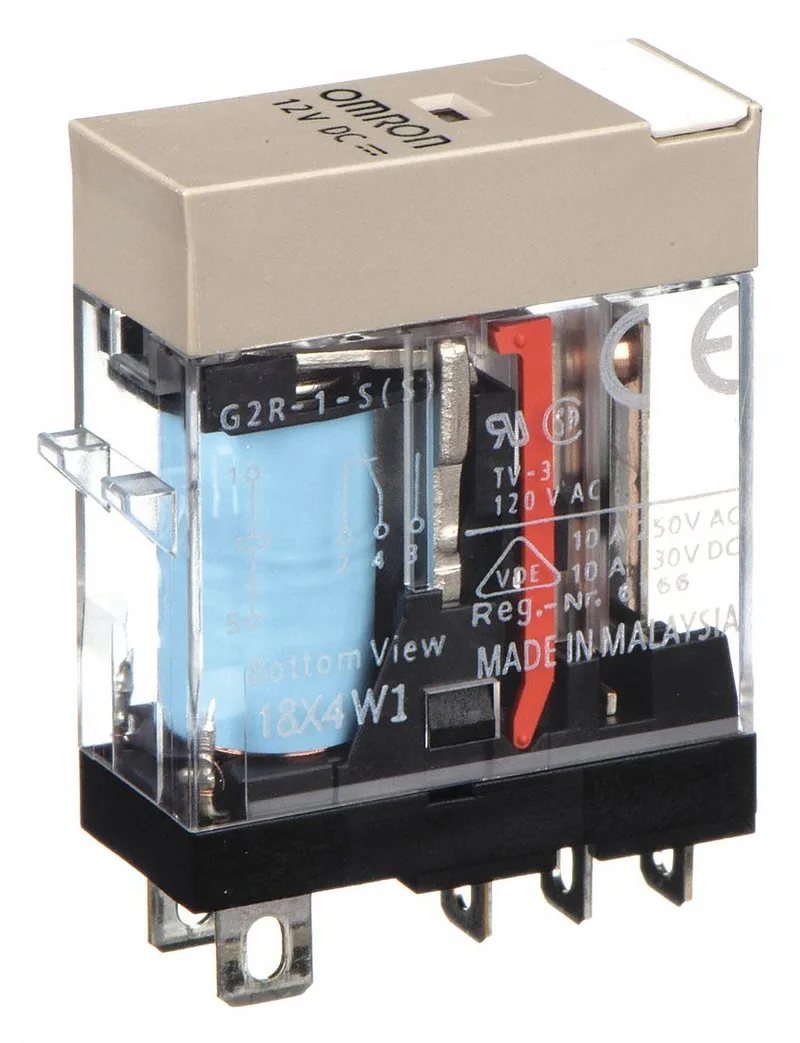

Omron G2R1SDC12S
MPNG2R1SDC12S
RELAY SPST 12VDC COIL 10A 250VAC PCBD MTG|RELAY SPST 12VDC COIL 10A 250VAC PCBD MTG
$2.31 – $7.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G2RS Series |
| Electrical connection type | Tab |
| Coil voltage | 12V DC |
| Coil voltage (Nominal@60Hz) | 12V DC |
| Current rating | 10 A |
| Horsepower @ 120V AC | 1/3 hp |
| Horsepower @ 240V AC | 1/2 hp |
| Contact form | SPDT |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 5 |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 20,000,000 |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Socket code | H |
| Status indicator | Mechanical Flag |
| Contact rating | 7.5 A @ 250V10 A @ 250V |
| Dielectric strength | 1,000V AC Between Contacts of Same Polarity; 5,000V AC Between Coil and Contacts |
| Push-To-Test button | Manual Push Test Button |
MPN
G2R1SDC12S
