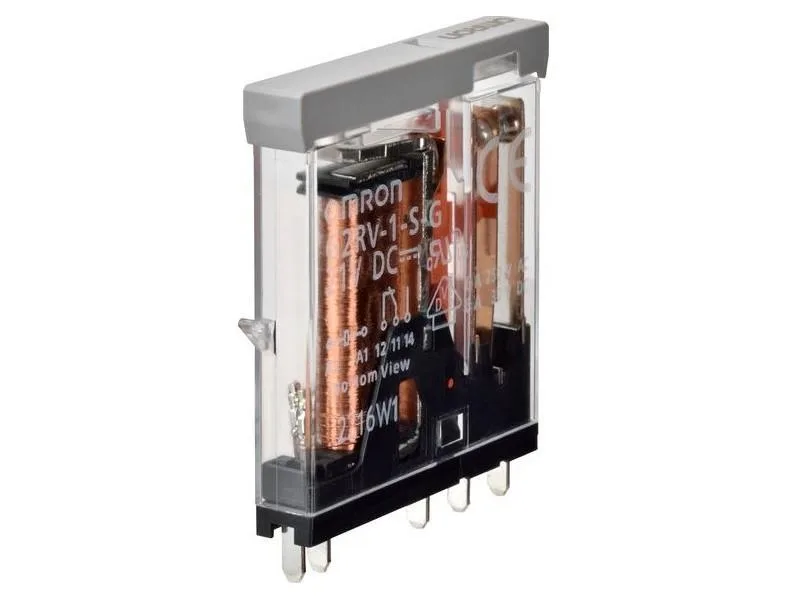

Omron G2RV-1-S-G DC21 — General Purpose Relays

Omron G2RV-1-S-G DC21

MPNG2RV-1-S-G DC21

OMRON General Purpose Relays: 21V DC, 5 Pins/Terminals, SPDT

$3.87 – $21.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

G2RV-1-S-G DC21 — Identification
ParameterValue
SeriesG2RV-SR
G2RV-1-S-G DC21 — Contacts & Switching
ParameterValue
Contact formSPDT
Contact rating (AC)6 A @ 250V2.50 A @ 250V
Mechanical life (operations)5,000,000
Electrical life (operations)50,000; 70,000
G2RV-1-S-G DC21 — Coil & Supply
ParameterValue
Coil voltage21V DC
G2RV-1-S-G DC21 — Electrical
ParameterValue
Dielectric strength1,000V AC 50/60 Hz 1 min Contact Between the Same Polarity; 4,000V AC 50/60 Hz 1 min Between Coil and Contacts
G2RV-1-S-G DC21 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonNo Test Button
G2RV-1-S-G DC21 — Mechanical
ParameterValue
Electrical connection typePin
Number of pins/terminals5
G2RV-1-S-G DC21 — Other specifications
ParameterValue
Contact rating2 A @ 30V6 A @ 30V
MPN
G2RV-1-S-G DC21
