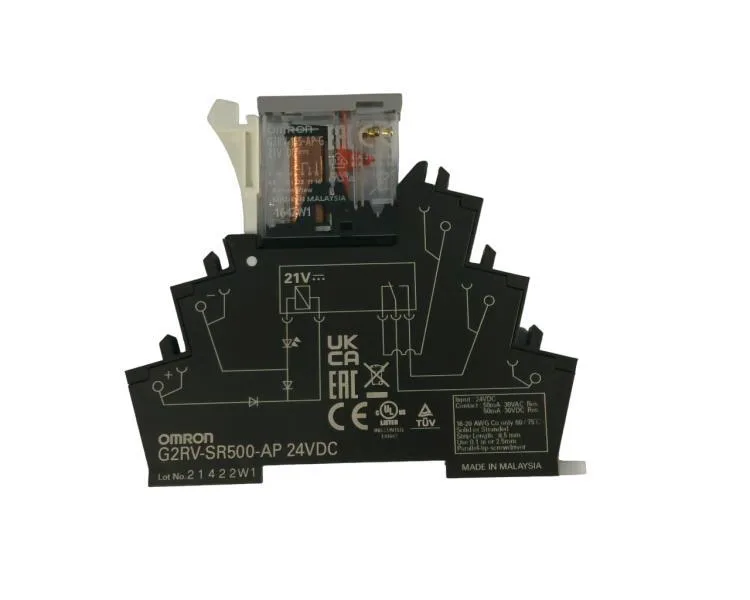

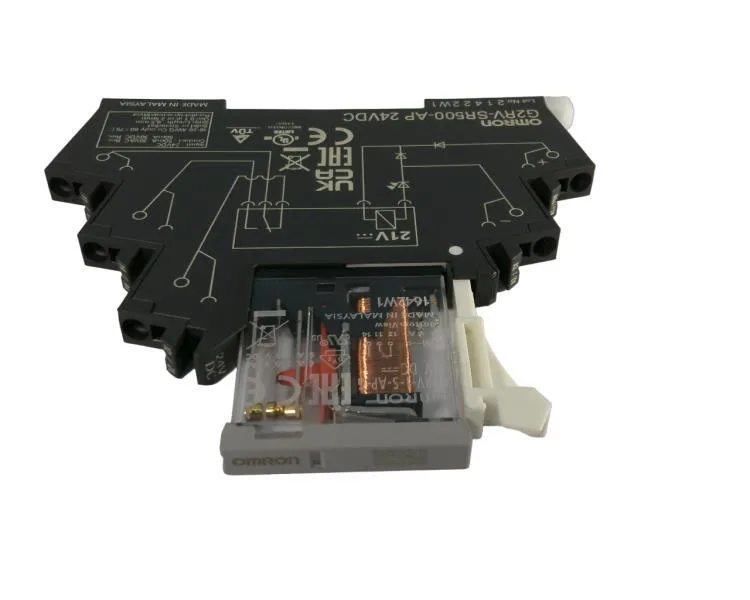

The Omron G2RV-SR500-AP DC24 is a slimline relay in the G2RV series, occupying just 6 mm per channel on the DIN rail. The 24 VDC coil suits standard control-voltage panels, and the narrow footprint frees rail space for additional I/O or isolation modules in dense cabinets.
The spring-cage terminals accept 0.2–2.5 mm² solid or ferruled stranded wire; strip length is 8 mm. Coil suppression is built in, so no external flyback diode is needed across the 24 VDC coil.
