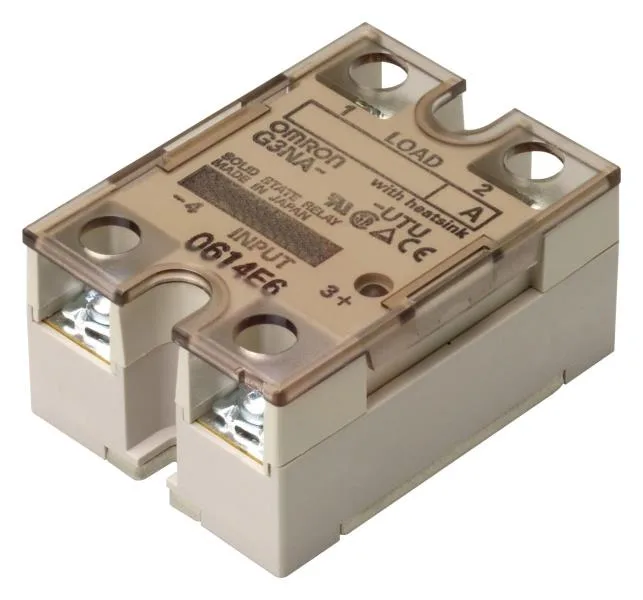

Omron G3NA-220B-UTU DC5-24
MPNG3NA-220B-UTU DC5-24
OMRON Solid State Relay: Surface Mounted, 20 A Max Output Current, Phototriac, AC Output
$21.59 – $57.85Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3NA Series |
| Current type | DC |
| Voltage (Current type) | AC Output |
| Switch component type | Phototriac |
| Electrical connection type | Screw |
| Input voltage | 5 to 24V DC |
| Output voltage | 24 to 240V AC |
| Input current | 17.4 to 35 A |
| Maximum output current with heat sink | 20 A |
| Maximum output current without heat sink | 35 A |
| Electrical phase | Single |
| Relay mounting style | Surface |
All specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 176 °F |
| Minimum operating temperature | -22 °F |
| Body depth | 0.98 in |
| Body width | 1.69 in |
| Body height | 2.28 in |
| Standards | CE Certified; CSA Certified; TUV Certified; UL Listed |
| Brand | OMRON |
| Heat sink | Not Included |
| Finger safe | Yes |
| Status indicator | LED Indicator |
| Switch configuration | Form A |
| Insulation resistance | 100 megaohm |
| Output switching mode | Zero Crossing |
MPN
G3NA-220B-UTU DC5-24
