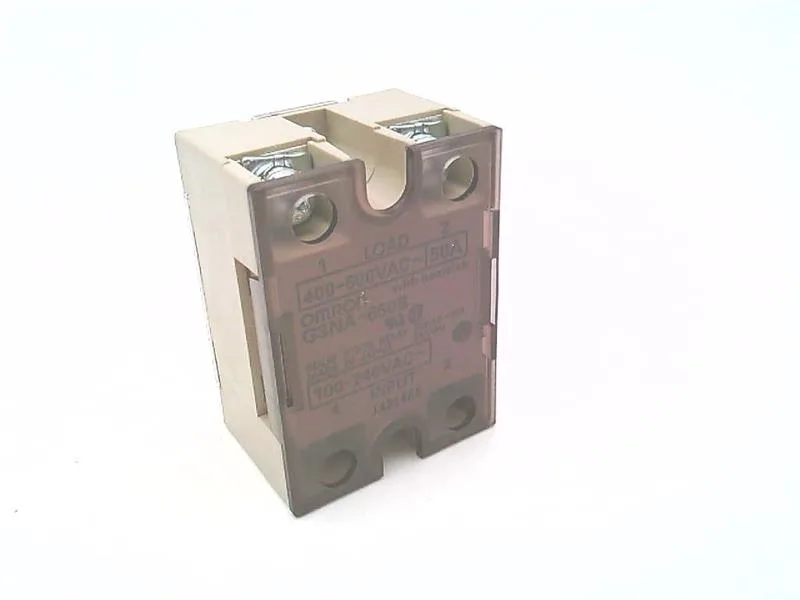

Omron G3NA-650B-AC100-240
MPNG3NA-650B-AC100-240
OMRON Solid State Relay: Surface Mounted, 50 A Max Output Current, Photocoupler, AC Output
$158.96 – $227.60Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3NA Series |
| Current type | AC |
| Voltage (Current type) | AC Output |
| Switch component type | Photocoupler |
| Electrical connection type | Screw |
| Input voltage | 100 to 240V AC |
| Output voltage | 400 to 600V AC |
| Input current | 17.4 to 35 A |
| Maximum output current with heat sink | 50 A |
| Maximum output current without heat sink | 6 A |
| Electrical phase | Single |
| Relay mounting style | Surface |
All specifications+14 ▾
| Parameter | Value |
|---|---|
| Maximum operating temperature | 176 °F |
| Minimum operating temperature | -22 °F |
| Body depth | 2.28 in |
| Body width | 1.69 in |
| Case color | Beige |
| Body height | 1.18 in |
| Standards | CE Certified; CSA Certified; UL Listed |
| Brand | OMRON |
| Heat sink | Not Included |
| Finger safe | Yes |
| Status indicator | LED Indicator |
| Switch configuration | Form A |
| Insulation resistance | 100 megaohm |
| Output switching mode | Zero Crossing |
MPN
G3NA-650B-AC100-240
