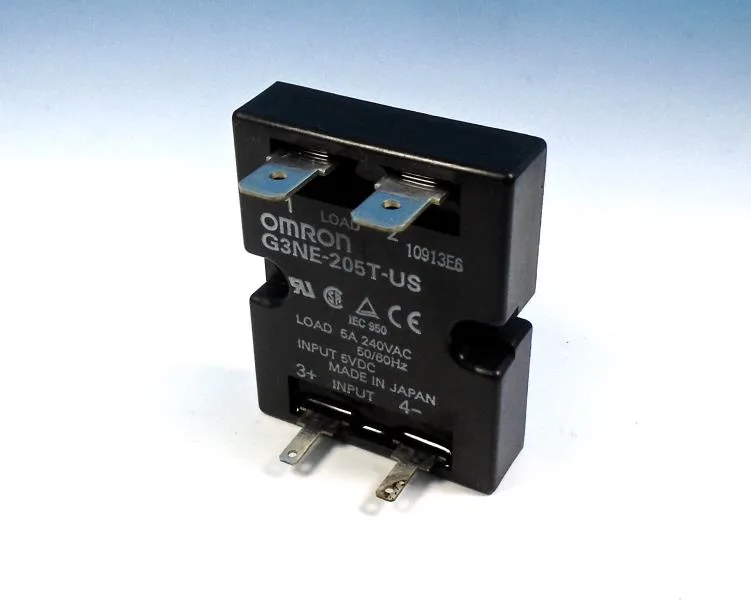

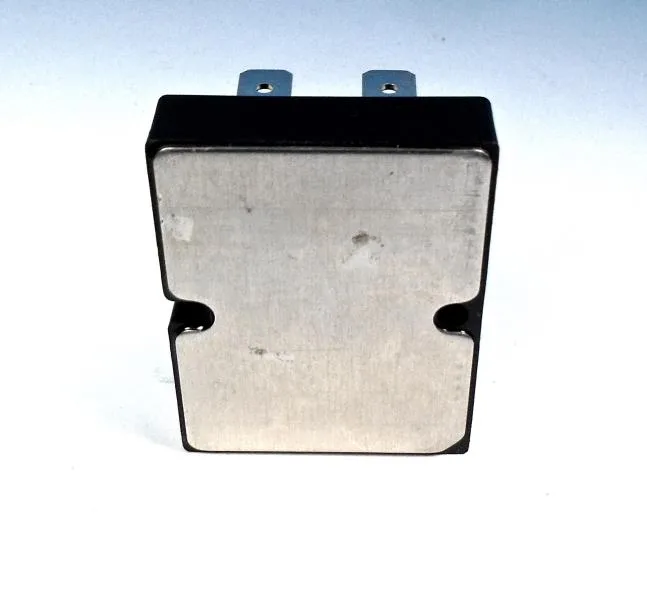

Omron G3NE-205T-US DC5
MPNG3NE-205T-US DC5
OMRON Solid State Relay: Surface Mounted, 5 A Max Output Current, Phototriac, AC Output
$29.37 – $44.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3NE Series |
| Voltage out | 120 to 240 V AC |
| Current in | 5 A |
| Current out max | 5 A |
| Mounting | Surface |
| Terminal_type | Tab |
| Temp operating max | 176 °F |
| Temp operating min | -22 °F |
| Depth | 11.43 |
| Width | 47.498 |
| Height | 37.338 |
| Display_color_depth | Black |
All specifications
| Parameter | Value |
|---|---|
| Standards | CSA Certified; IEC/EN; TUV Certified; UL Listed |
| Heat_sink | Not Included |
| Is_finger_safe | false |
| Resistance | 100 megaohm |
| Input voltage | 30 |
| Switching current | AC Output |
| Has_status_indicator | No Indicator |
| Switch_configuration | Form A |
| Output switching mode | Zero Crossing |
| Switch_component_type | Phototriac |
MPN
G3NE-205T-US DC5
