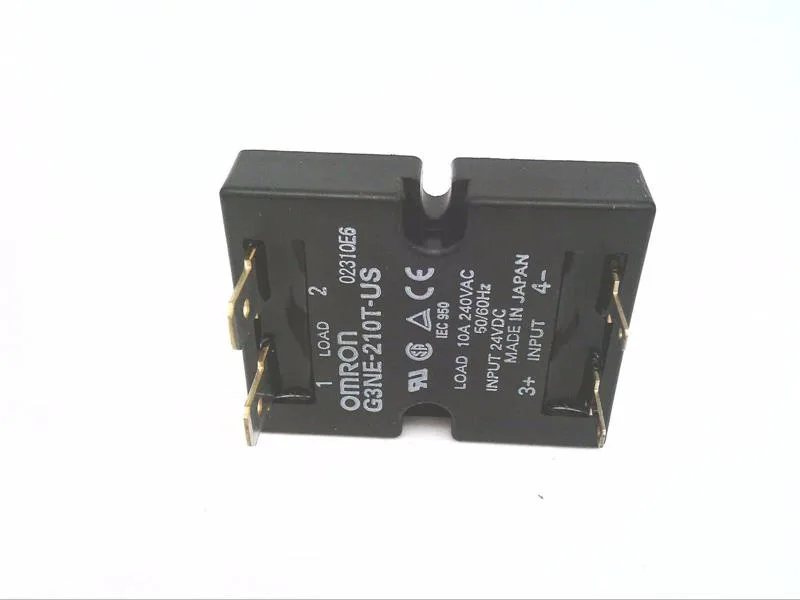

Omron G3NE-210T-US-DC24
MPNG3NE-210T-US-DC24
OMRON Solid State Relay: Surface Mounted, 10 A Max Output Current, Phototriac, AC Output
$21.59 – $28.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3NE Series |
| Current type | DC |
| Voltage (Current type) | AC Output |
| Switch component type | Phototriac |
| Electrical connection type | Tab |
| Input voltage | 20 to 28V DC |
| Output voltage | 120 to 240V AC |
| Input current | 5 A |
| Maximum output current with heat sink | 10 A |
| Maximum output current without heat sink | 5 A |
| Relay mounting style | Surface |
| Maximum operating temperature | 176 °F |
All specifications+13 ▾
| Parameter | Value |
|---|---|
| Minimum operating temperature | -22 °F |
| Body depth | 0.45 in |
| Body width | 1.87 in |
| Case color | Black |
| Body height | 1.47 in |
| Standards | CSA Certified; IEC/EN; TUV Certified; UL Listed |
| Brand | OMRON |
| Heat sink | Not Included |
| Finger safe | Yes |
| Status indicator | No Indicator |
| Switch configuration | Form A |
| Insulation resistance | 100 megaohm |
| Output switching mode | Zero Crossing |
MPN
G3NE-210T-US-DC24
