Omron G3PE-215B-3N

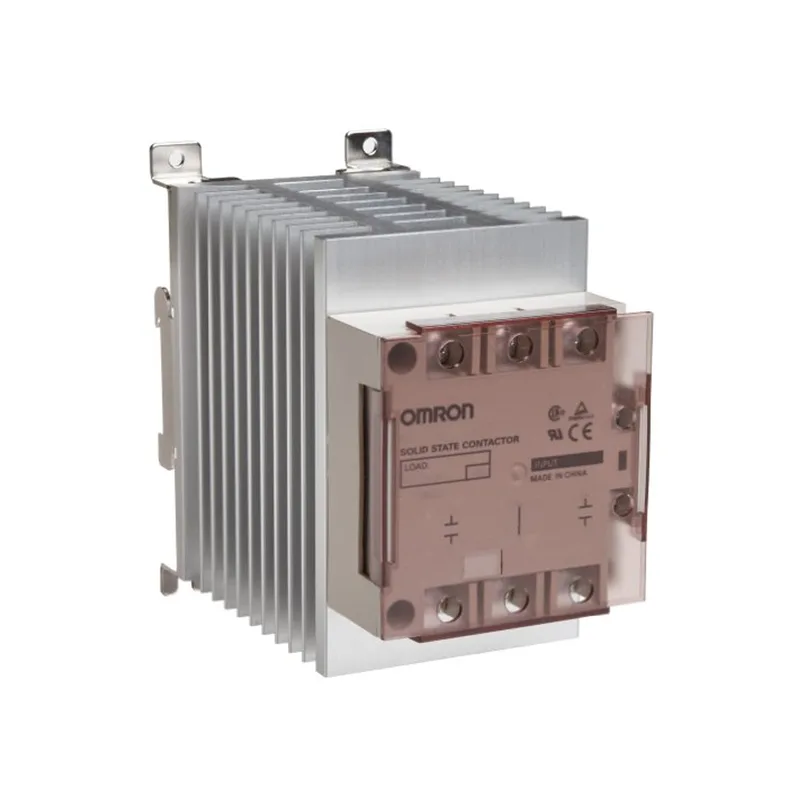

Omron G3PE-215B-3N Three-Phase SSR, 15 A, DIN Rail

MPN G3PE-215B-3N

Omron G3PE-215B-3N three-phase solid state contactor for heaters, 15 A, 100-240 VAC load, 12-24 VDC input, DIN track mounting, zero cross, phototriac isolation.

$190.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G3PE-215B-3N specifications
ParameterValue
Product typeDIN track mounting
Poles2
Insulation methodPhototriac coupler

Product details

Three-phase heater switching on DIN rail

The Omron G3PE-215B-3N is a three-phase solid state contactor rated for heater loads up to 15 A per phase at 100-240 VAC. The 12-24 VDC input side means it can be driven directly from a PLC digital output or a temperature controller without an interposing relay. It snaps onto a DIN track (DIN track mounting), which keeps panel layout clean and simplifies replacement — no separate heatsink or contactor base to bolt down.

Zero-cross switching and isolation

The zero cross function turns the load on only when the AC waveform crosses zero, which minimises inrush current and radiated EMI — a practical advantage when switching resistive heater banks that otherwise draw a cold surge. Isolation between the control and load circuits is handled by a phototriac coupler, so the 12-24 VDC control side stays electrically separate from the mains-powered heater circuit. A yellow LED operation indicator on the housing gives a quick visual check that the control signal is present — useful during commissioning or fault-finding without reaching for a meter.

MPN
G3PE-215B-3N
