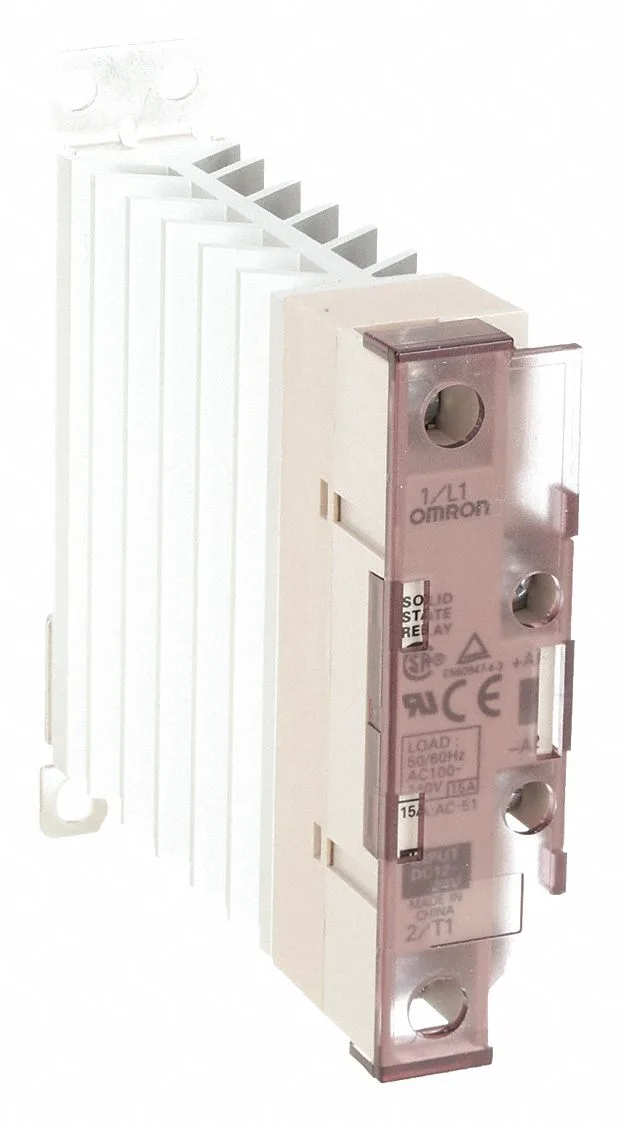

Omron G3PE-215B-DC12-24
MPNG3PE-215B-DC12-24
DIN RAIL PANEL MOUNT INTERFACE RELAY MODULE SCREW 15A 12 - 2|DIN RAIL PANEL MOUNT INTERFACE RELAY MODULE SCREW 15A 12 - 24VDC
$19.82Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3PE Series |
| Current type | DC |
| Voltage (Current type) | AC Output |
| Switch component type | Phototriac |
| Electrical connection type | Screw |
| Input voltage | 4 to 30V DC |
| Output voltage | 120 to 240V AC |
| Input current | 0.6 to 15 A |
| Maximum output current with heat sink | 15 A |
| Maximum output current without heat sink | 15 A |
| Frequency | 50/60 Hz |
| Electrical phase | Single |
All specifications
| Parameter | Value |
|---|---|
| Relay mounting style | DIN-Rail & Surface |
| Maximum operating temperature | 176 °F |
| Minimum operating temperature | -22 °F |
| Body depth | 3.94 in |
| Body width | 0.88 in |
| Case color | Beige |
| Body height | 3.3 in |
| Standards | CSA Certified; EN Standards; RoHS Compliant; TUV Certified; UL Listed |
| Brand | OMRON |
| Heat sink | Integral |
| Finger safe | Yes |
| Status indicator | Yellow LED Indicator |
| Switch configuration | Form A |
| Insulation resistance | 100 megaohm |
| Output switching mode | Zero Crossing |
MPN
G3PE-215B-DC12-24
