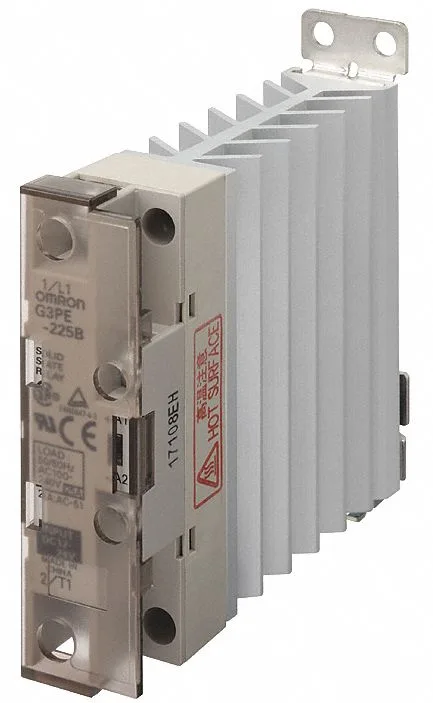

Omron G3PE-225B DC12-24 Solid State Relay, 25 A, 120-240V AC

MPNG3PE-225B DC12-24

Omron G3PE Series, G3PE-225B DC12-24, Solid State Relay, DIN-Rail & Surface Mount, 25 A Max Output Current, Phototriac, AC Output, 120-240V AC.

$36.83 – $89.46Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

G3PE-225B DC12-24 key specifications
ParameterValue
SeriesG3PE Series
Current typeDC
Voltage (Current type)AC Output
Switch component typePhototriac
Electrical connection typeScrew
Input voltage4 to 30V DC
Output voltage120 to 240V AC
Input current17.4 to 35 A
Maximum output current with heat sink25 A
Maximum output current without heat sink25 A
Frequency50/60 Hz
Electrical phaseSingle

All specifications

G3PE-225B DC12-24 additional specifications
ParameterValue
Relay mounting styleDIN-Rail & Surface
Maximum operating temperature176 °F
Minimum operating temperature-22 °F
Body depth3.94 in
Body width0.88 in
Case colorBeige
Body height3.3 in
StandardsCSA Certified; EN Standards; RoHS Compliant; TUV Certified; UL Listed
Heat sinkIntegral
Finger safeYes
Status indicatorYellow LED Indicator
Switch configurationForm A
Insulation resistance100 megaohm
Output switching modeZero Crossing

Product details

The Omron G3PE-225B DC12-24 is a single-phase solid-state relay from the G3PE Series, switching AC loads up to 25 A at 120–240 V AC using a zero-crossing phototriac output. The 25 A rating holds with or without the integral heat sink, so the part delivers its full rated current in the standard DIN-rail or surface-mount installation — no derating for the panel layout. Input control is 4–30 V DC, drawing 17.4 to 35 mA, with a yellow LED to confirm the coil is energized.

At 0.88 in wide and 3.94 in deep, it occupies a single module width, leaving room alongside contactors or terminal blocks in a crowded enclosure. The integral heat sink means no separate thermal management part to source or fit — one less line item on the BOM.

Certifications and compliance

Finger-safe construction (IP20 touch-safe terminals) reduces the shock risk during commissioning or maintenance.

Frequently asked questions

Where can I buy the G3PE-225B DC12-24 and get a price?

The G3PE-225B DC12-24 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What certifications does the G3PE-225B DC12-24 carry?

The G3PE-225B DC12-24 is UL Listed, CSA Certified, TUV Certified, meets EN Standards, and is RoHS Compliant.

What is the output switching method of this SSR?

The G3PE-225B DC12-24 uses zero-crossing switching via a phototriac output, minimizing electrical noise and inrush current when turning on AC loads.
