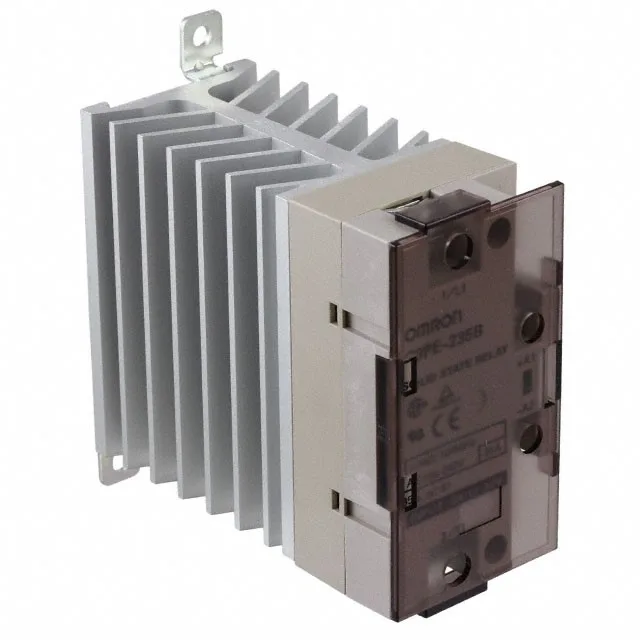

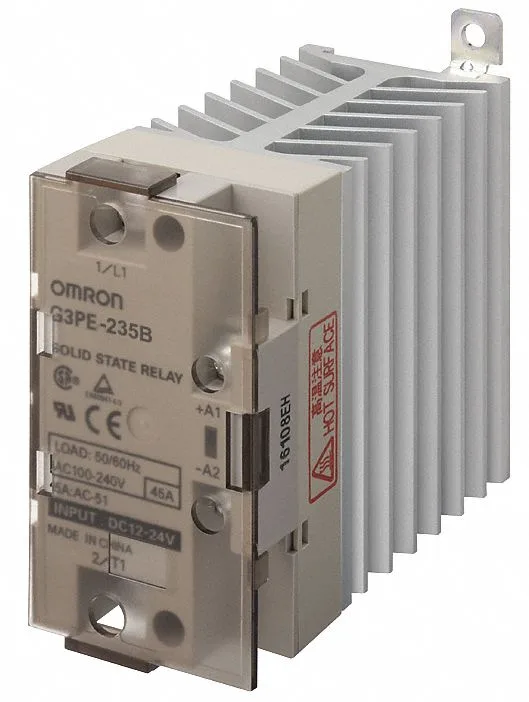

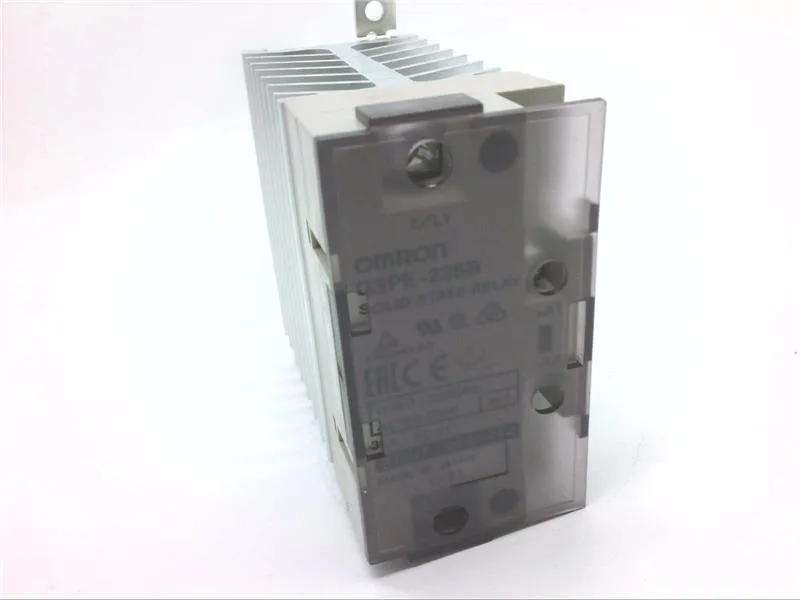

Omron G3PE-235B DC12-24 — Solid State Relays

Omron G3PE-235B DC12-24

MPNG3PE-235B DC12-24

OMRON Solid State Relay: DIN-Rail & Surface Mounted, 35 A Max Output Current, Phototriac, AC Output

$39.37 – $102.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

G3PE-235B DC12-24 key specifications
ParameterValue
SeriesG3PE Series
Current typeDC
Voltage (Current type)AC Output
Switch component typePhototriac
Electrical connection typeScrew
Input voltage4 to 30V DC
Output voltage120 to 240V AC
Input current17.4 to 35 A
Maximum output current with heat sink35 A
Maximum output current without heat sink35 A
Frequency50/60 Hz
Electrical phaseSingle

All specifications

G3PE-235B DC12-24 additional specifications
ParameterValue
Relay mounting styleDIN-Rail & Surface
Maximum operating temperature176 °F
Minimum operating temperature-22 °F
Body depth3.94 in
Body width0.88 in
Case colorBeige
Body height3.3 in
StandardsCSA Certified; EN Standards; RoHS Compliant; TUV Certified; UL Listed
BrandOMRON
Heat sinkIntegral
Finger safeYes
Status indicatorYellow LED Indicator
Switch configurationForm A
Insulation resistance100 megaohm
Output switching modeZero Crossing
MPN
G3PE-235B DC12-24
