Omron G3PE245BDC1224

Omron G3PE245BDC1224 SSR, 45 A, 120-240 VAC, Zero-Crossing

MPN G3PE245BDC1224

Omron G3PE Series, SSR, 45 A output with integral heat sink, 4-30 VDC input, 120-240 VAC load, zero-crossing switching, DIN-rail & surface mount, UL/CSA/TUV.

$77.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G3PE245BDC1224 specifications
ParameterValue
SeriesG3PE Series
Switch component typePhototriac
Voltage120 to 240 V AC
Input voltage4 to 30 V DC
Frequency50/60 Hz
Switch configurationForm A

Product details

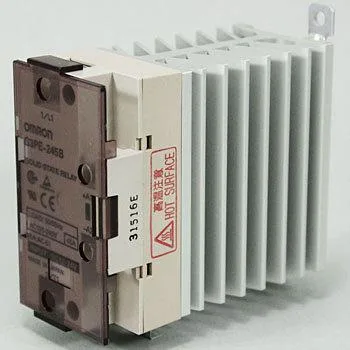

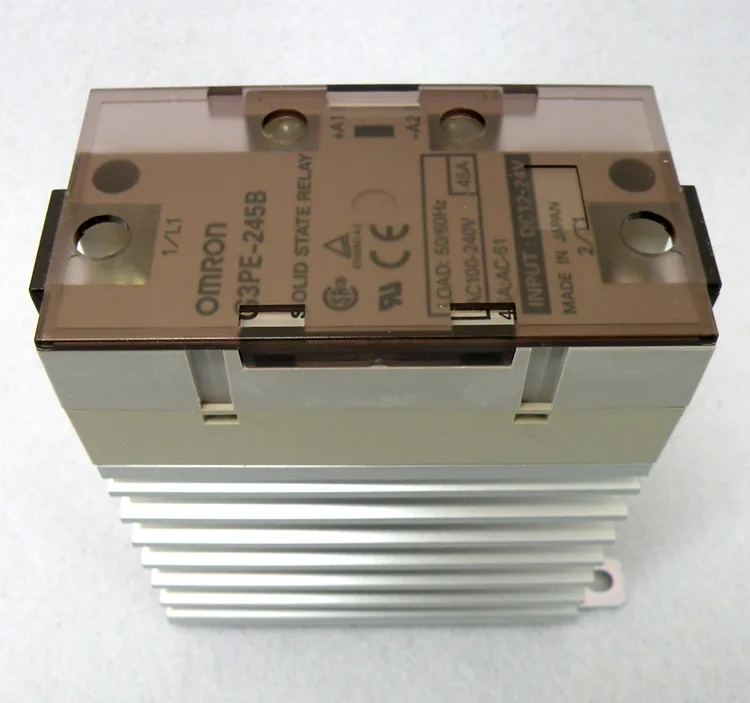

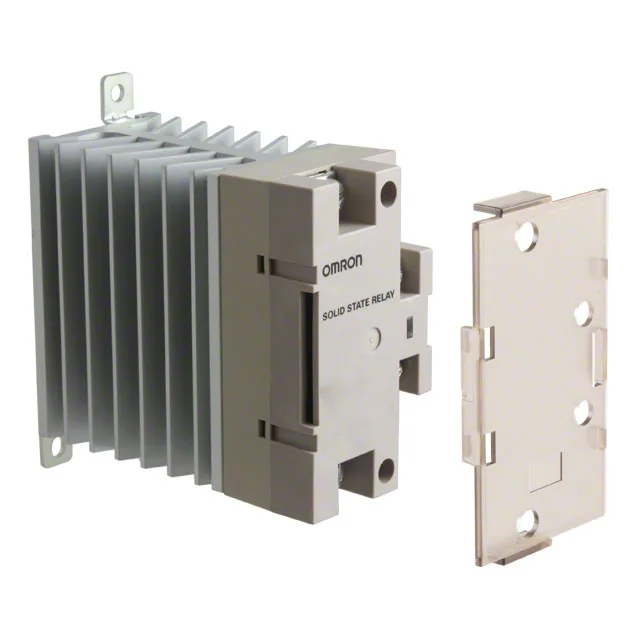

The Omron G3PE245BDC1224 is a single-phase, zero-crossing SSR from the G3PE Series, rated for 45 A continuous output with its integral heat sink — so it handles resistive heater loads or moderate inductive switching up to that current without needing an external heatsink bolted on. The 4-30 VDC input side is optically isolated via a phototriac, giving 2500 V isolation between control and load circuits.

Screw terminals accept 0.2-2.5 mm² wire; the 0.88-inch width keeps panel density reasonable.

MPN
G3PE245BDC1224
