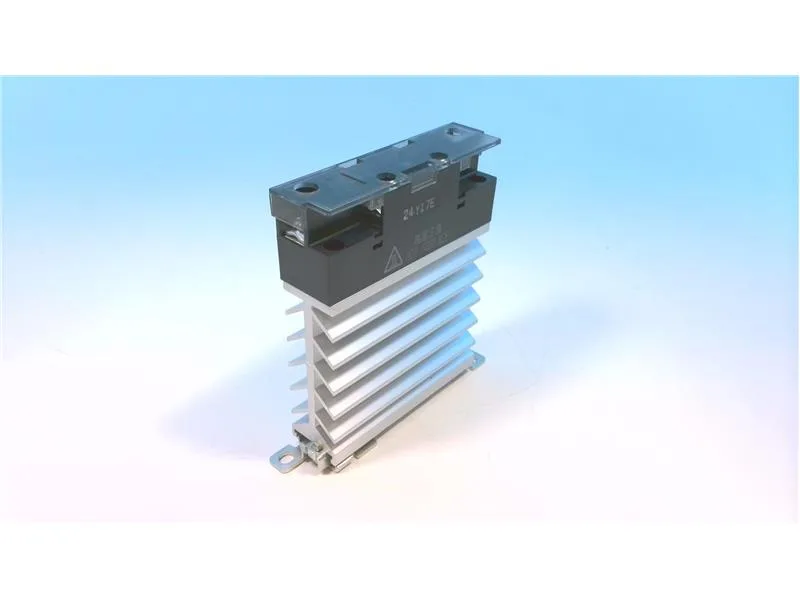

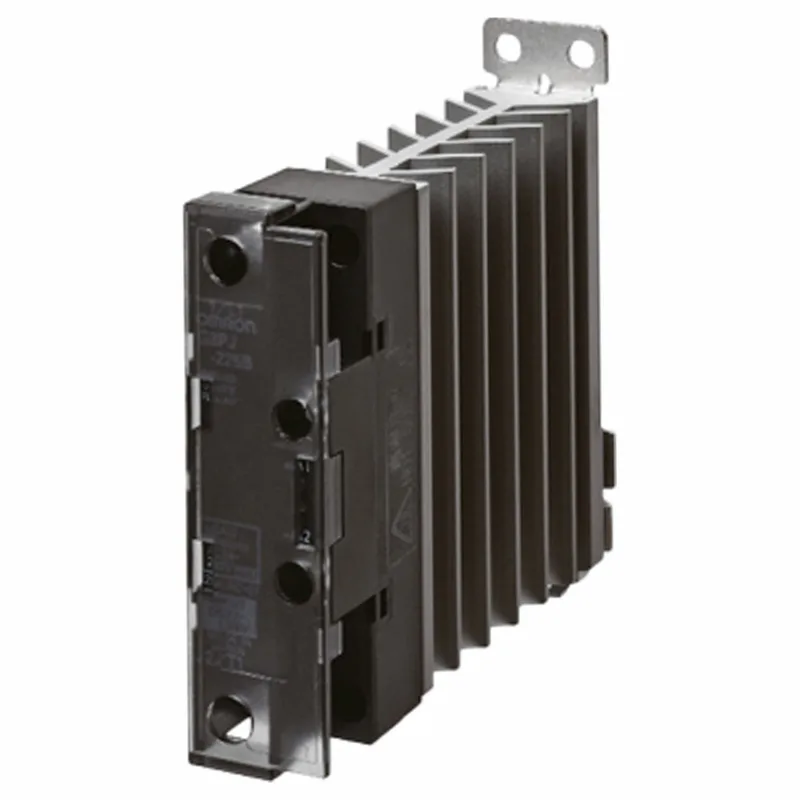

Omron G3PJ225BDC1224
MPNG3PJ225BDC1224
Solid State Relay, 1NO, 25A, 264V, Screw Terminal, G3PJ, Value Design
$30.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G3PJ |
| Current type | DC |
| Voltage (Current type) | AC Output |
| Switch component type | Phototriac |
| Electrical connection type | Screw |
| Input voltage | 9.6 to 30V DC |
| Output voltage | 19 to 264V AC |
| Input current | 7 mA |
| Maximum output current with heat sink | 27 A |
| Electrical phase | Single |
| Relay mounting style | DIN-Rail & Surface |
| Response time | 1 msec |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Body depth | 3.93 in |
| Body width | 0.88 in |
| Body height | 3.93 in |
| Standards | C-UL and TUV (EN 60947-4-3); Pollution Category 2; RoHS |
| Brand | OMRON |
| Heat sink | Included |
| Status indicator | LED Indicator |
| Insulation resistance | 100 megaohm at 500V DC |
| Output switching mode | Zero Crossing |
MPN
G3PJ225BDC1224
