Omron G3PW-A220EC-S-FLK

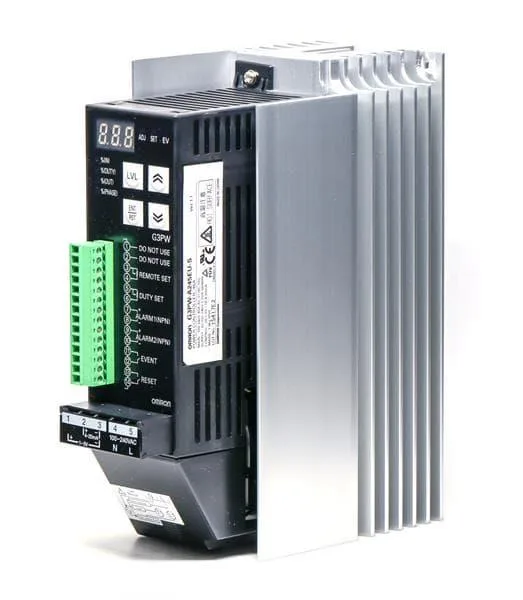

Omron G3PW-A220EC-S-FLK Power Controller, 1-20A, 100-240VAC

MPN G3PW-A220EC-S-FLK
Active

Omron G3PW Series, Power Controller, Chassis Mount, 100-240VAC, 1-20A Input, Dual Solid-State Outputs, RS-485 CompoWay/F, Event Input, Heater Fault Detection.

$244.23 – $705.38 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G3PW-A220EC-S-FLK specifications
ParameterValue
SeriesG3PW
Output signalSolid State (2)
Display typeLED - Red Characters
Product typePower Controller
Supply voltage100 to 240VAC
ProtocolRS-485 (CompoWay/F)
MountingChassis Mount
Temp operating max55 °C
Temp operating min-15 °C
Weight2.3 lbs (1 kg)
PackageBox
Control methodOn/Off, Phase Control

Product details

The Omron G3PW-A220EC-S-FLK is a chassis-mount power controller rated for a 1-20A input range, operating on a 100-240VAC supply. It's built around dual solid-state outputs — no moving contacts to weld or wear, which matters when you're cycling a resistive heater bank hundreds of times a shift. Control methods include On/Off and Phase Control, so you can either bang-bang the load or ramp it smoothly for soft starts on large heaters. The built-in heater fault detection monitors the load side and flags an open element before the line drops below setpoint — a feature that saves troubleshooting time on multi-zone ovens and extruder barrels. It communicates over RS-485 using Omron's CompoWay/F protocol, which ties directly into their CJ/CS/CJ2 PLC families without a protocol converter. The red LED display shows three characters — enough for a setpoint or actual current readout in a panel door cutout.

This is a chassis-mount unit — no DIN rail clips, so plan for a backplate or sub-panel with screw terminals. The termination style is screw terminal, which is field-serviceable with a standard #2 Phillips and accepts ring or fork lugs up to maybe 14 AWG depending on the lug stack.

The event input lets you wire in an external contact (door interlock, E-stop, or a PLC dry contact) to inhibit the output without cycling the main supply — handy for a sequenced start or a safety circuit that doesn't want to kill the whole panel.

MPN
G3PW-A220EC-S-FLK
