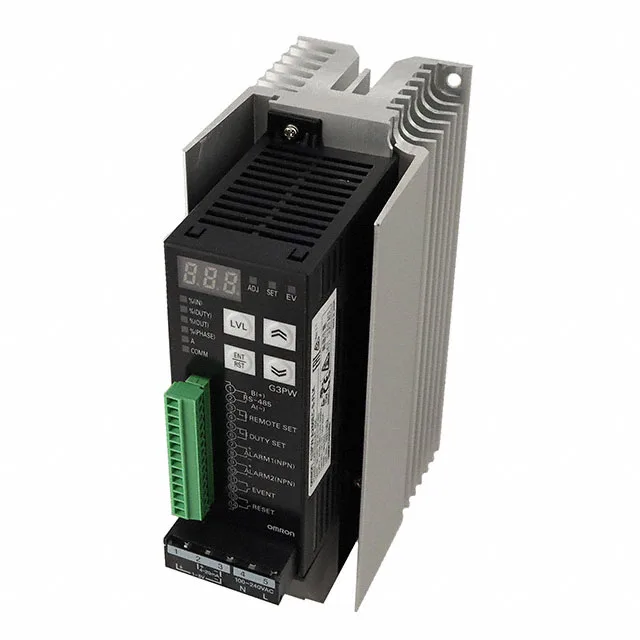

The Omron G3PW-A260EC-C-FLK is a Power Controller in the G3PW series, built to regulate current to resistive heater loads using either On/Off or Phase Control methods. It accepts a 100 ~ 240VAC supply and handles an input range of 1 ~ 60A, making it suitable for medium-to-high-current heating applications like industrial ovens, packaging sealers, and plastic molding machines. Two solid-state outputs (SSR drive) provide the switching, eliminating mechanical contact wear. The unit includes Event Input for external trigger control and Heater Fault Detection to monitor load continuity — both critical for automated line supervision. Communication is via RS-485 using the CompoWay/F protocol, so the controller integrates into a PLC-based supervisory system without extra gateway hardware. The 3-character red LED display shows operating status or fault codes at a glance.
Chassis-mount design means the unit bolts directly to a panel backplate — no DIN rail required. Rated for an operating temperature range of -15°C to 55°C, so it can sit inside a non-conditioned electrical enclosure near the heat source without derating concerns.
