Omron G3R-ODX02SN DC5-24 — Solid State Relays

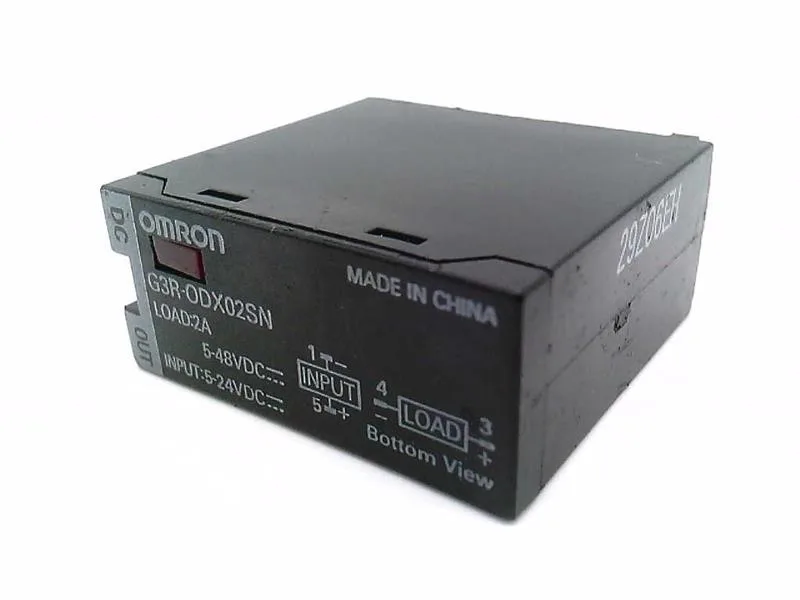

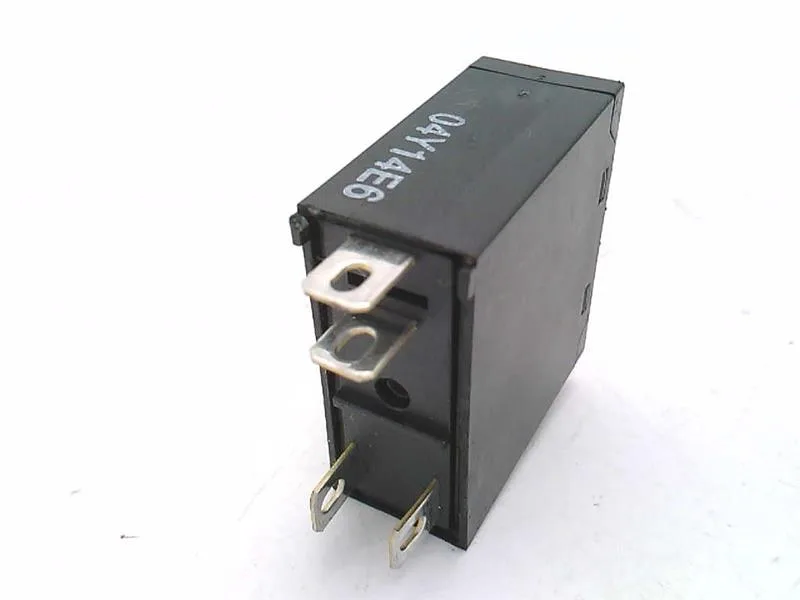

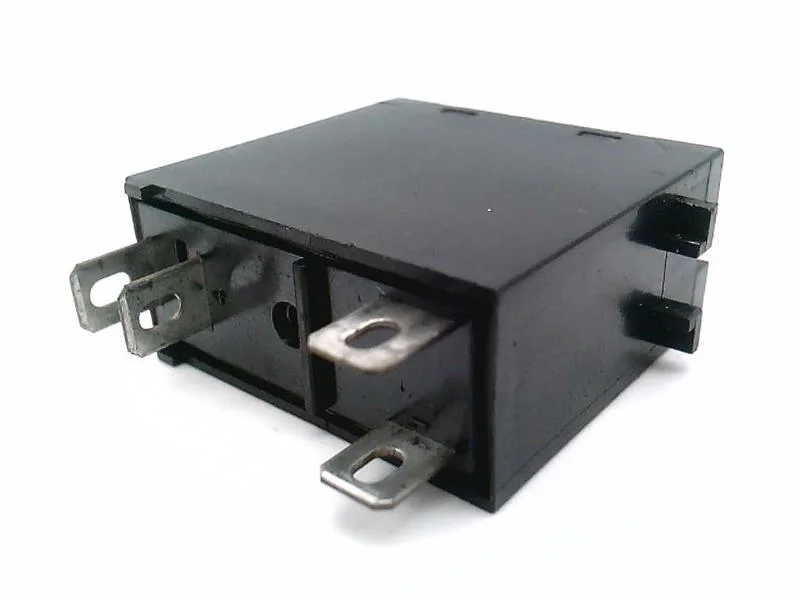

Omron G3R-ODX02SN DC5-24 Solid State Relay, 2 A, 60 Vdc

MPNG3R-ODX02SN DC5-24

Omron G3R-O Series solid state relay, 2 A load, 60 Vdc load, 32 V control, DIN rail mount, part G3R-ODX02SN DC5-24.

$52.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

G3R-ODX02SN DC5-24 — Specifications
ParameterValue
Weight0.05 kgs

Product details

What you're holding and what it switches

The G3R-ODX02SN DC5-24 is an Omron G3R-O series DC-output solid state relay rated for a 2 A load at 60 Vdc, with a 32 V control input — a compact switching block for low-voltage DC loads rather than a mains AC output stage, so the heat sink math runs against the on-state DC load current, not an AC rms figure. Snaps onto a DIN rail inside the panel, which keeps the wiring harness tidy against the rest of the SSR row and lets a junior trace the control side back to the PLC output without guessing at the mounting footprint.

The line is flagged mature rather than actively promoted, so the part is still orderable but new design-ins should treat it as a known, supported relay — not a fresh-platform pick — and confirm the G3R-O family remains the right answer for the next revision of the panel before committing the BOM position.

Frequently asked questions

What does the G3R-ODX02SN DC5-24 actually switch in a panel?

It switches a DC load up to 2 A at 60 Vdc from a 32 V control signal, with a DIN-rail-mount SSR body. That makes it the typical pick for low-voltage DC solenoid, heater, or indicator circuits driven from a PLC DO, not for mains AC motor or lighting loads.

MPN
G3R-ODX02SN DC5-24
