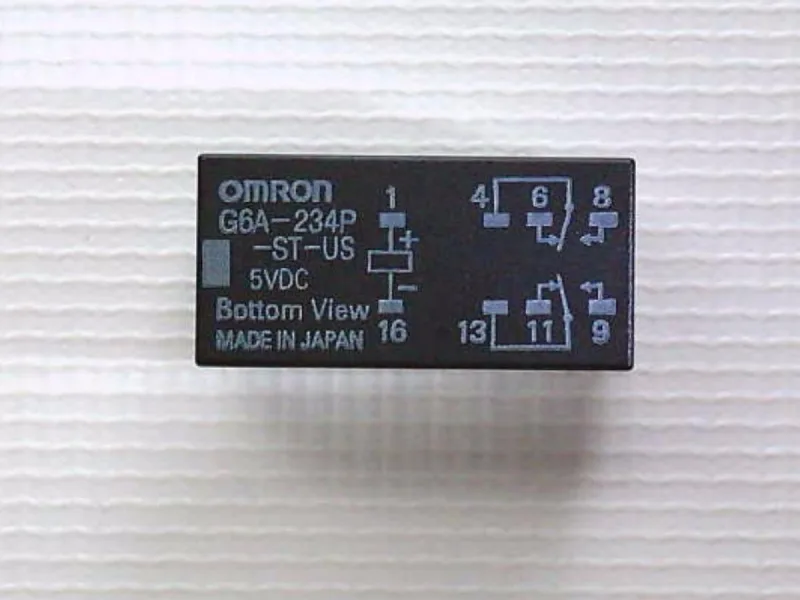

Omron G6A-234P-ST-US-DC5 — General Purpose Relays

Omron G6A-234P-ST-US-DC5 DPDT-NO Relay, 5 VDC Coil

MPNG6A-234P-ST-US-DC5

Omron G6A series DPDT-NO signal relay, order code G6A-234P-ST-US-DC5, 5 VDC coil, current production.

$12.79Ref. price · indicative, final on quote
Omron G6A-234P-ST-US-DC5 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

G6A-234P-ST-US-DC5 — Specifications
ParameterValue
Weight0.01 kgs

Product details

The Omron G6A-234P-ST-US-DC5 is a DPDT-NO signal relay with a 5 VDC coil, part of the G6A series. It's a standard form-factor relay for PCB or socket mounting, typically used in control logic, interposing, and low-power switching applications where a compact, reliable DPDT contact arrangement is needed.

Frequently asked questions

What is the coil voltage and contact configuration?

The coil is rated 5 VDC, and the contacts are DPDT-NO (double-pole double-throw, normally open). This suits low-voltage signal switching in control circuits.

MPN
G6A-234P-ST-US-DC5
